1-480426-0 | AMP

Plug housing, 4 pole, pitch 5.08 mm, straight, natural, 1-480426-0

Order No.: 71F954
EAN: 4099891012175
MPN:
1-480426-0
1-0480426-0

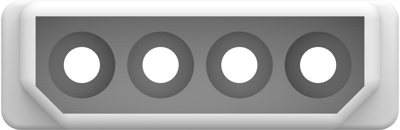

1-480426-0 AMP PCB Connection Systems Image 1

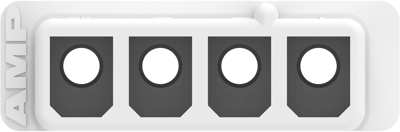

1-480426-0 AMP PCB Connection Systems Image 2

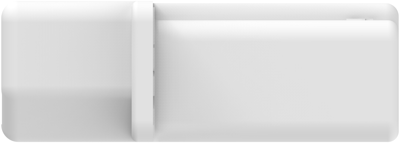

1-480426-0 AMP PCB Connection Systems Image 3

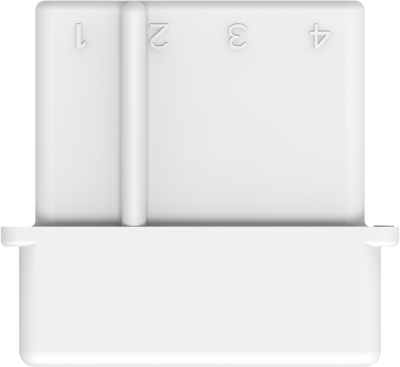

1-480426-0 AMP PCB Connection Systems Image 4

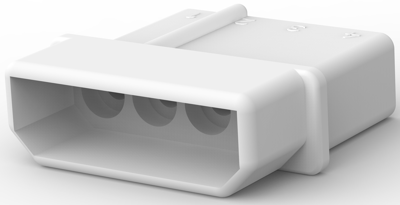

1-480426-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7378 € *
Available: 5,404 pcs.
Available in 5 Days: 3,937 pcs. - if ordered today
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7378 €
10 pcs.
0.6783 €
25 pcs.
0.6307 €
50 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale

Male and female contact housings, bare, 2 to 4 poles, type TE Connectivity/AMP 1-048.

To VDE 0110 group C. With polarized PA 6.6 housing to UL 94 V-2, without latching hook. Suitable as power connector for floppy disk drives. Corresponding snap-in crimp contacts are described below.

Male connector housings, type 1-048.

Technical attributes (type, number of poles, dimensions H/W/L): 1-0480426-0, 4-pole, 25.7/8.4/23.6 mm

Technical specifications
Filter Property Value
Grid 5.08 mm
Contact type pin
Version plug housing
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour natural
Pin number 4 pole
Connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
