1-480424-0 | AMP

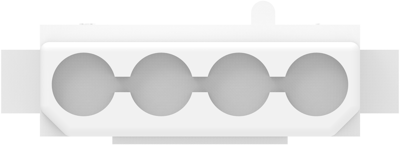

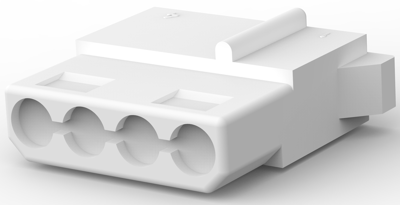

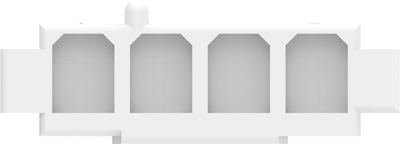

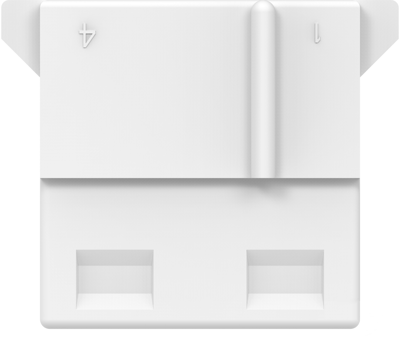

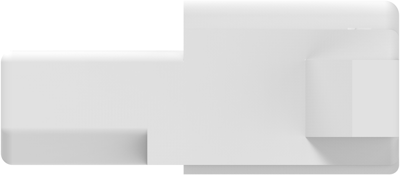

Socket housing, 4 pole, pitch 5.08 mm, straight, natural, 1-480424-0
Unit Price (€ / pc.)
0.3213 € *
Available: 309 pcs.
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3213 €
10 pcs.
0.2975 €
50 pcs.
0.2737 €
100 pcs.
0.2618 €
*incl. VAT plus shipping costs
Subject to prior sale
Male and female contact housings, bare, 2 to 4 poles, type TE Connectivity/AMP 1-048.
To VDE 0110 group C. With polarized PA 6.6 housing to UL 94 V-2, without latching hook. Suitable as power connector for floppy disk drives. Corresponding snap-in crimp contacts are described below.
Female connector housings, type 1-048.
Technical attributes (type, number of poles, dimensions H/W/L): 1-0480424-0, 4-pole, 26.0/7.9/21.6 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 4 pole | |
| Additional parts | unequipped | |
| Colour | natural | |
| Version | socket housing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
