1-480350-2 | AMP

Socket housing, 1 pole, straight, red, 1-480350-2

Order No.: 71P2213
EAN: 4099891720674
MPN:
1-480350-2

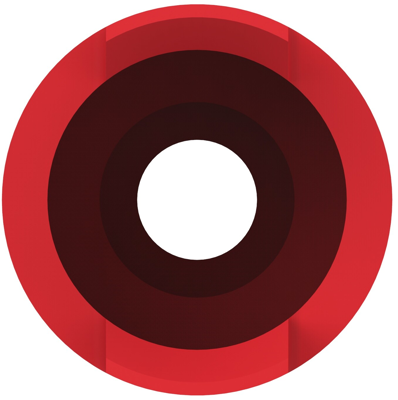

1-480350-2 AMP PCB Connection Systems Image 1

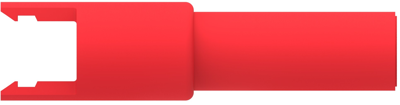

1-480350-2 AMP PCB Connection Systems Image 2

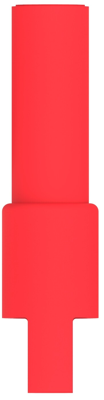

1-480350-2 AMP PCB Connection Systems Image 3

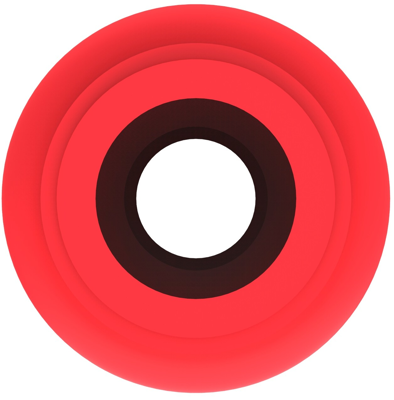

1-480350-2 AMP PCB Connection Systems Image 4

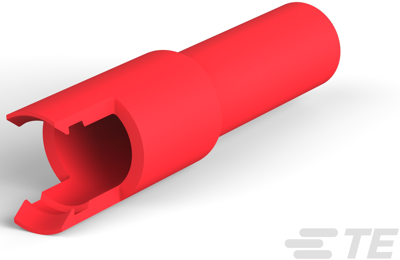

1-480350-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2237 € *
Available in 5 Days: 29,061 pcs. - if ordered today
Total Price:
22.37 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2237 €
250 pcs.
0.2059 €
500 pcs.
0.1916 €
1000 pcs.
0.1725 €
*incl. VAT plus shipping costs
Subject to prior sale

Power key connector, 1-480350-2, AMP

The 1-480350-2 is a power key connector for power circuits of home appliances, especially targeting gas appliances. With a clear clicking sound, contact insertion can be made easy. The double lock plate provides for complete loading of contacts. Locking levers are surrounded by walls, which protect levers and prevent tangling with wires. This connector is designed to release bubbles created by the process of potting, housing lances also help prevent tangling of wired contacts.

Features

  • Compact design with 19.4 mm mated height
  • Power circuit connector with 5.0 mm contact centerline
Technical specifications
Filter Property Value
Contact type pin
Version socket housing
Rated voltage 250 V
Orientation straight
Type of locking Yes
Number of rows 1
Colour red
Pin number 1 pole
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
