1-480318-4 | AMP

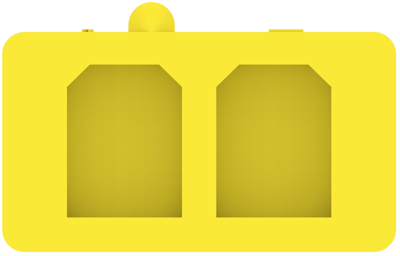

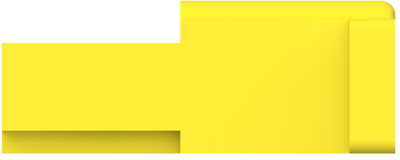

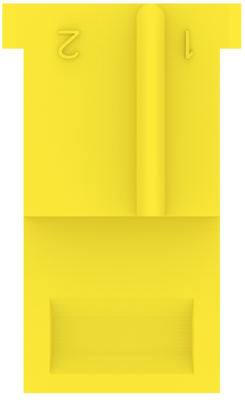

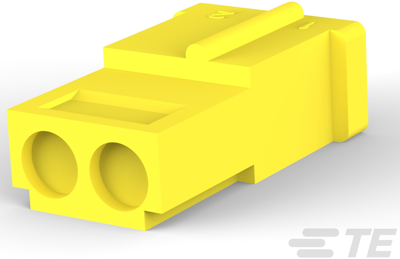

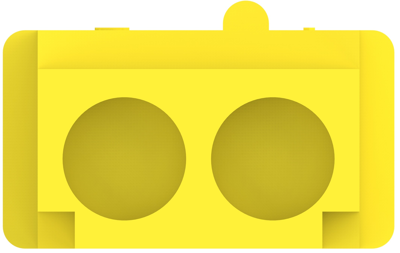

Plug housing, 2 pole, pitch 5.08 mm, straight, yellow, 1-480318-4
Order No.: 71P2212
EAN: 4099891720667
MPN:
1-480318-4
Unit Price (€ / pc.)
0.2237 € *
Available in 5 Days: 79,962 pcs. - if ordered today
Total Price:
22.37 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2237 €
250 pcs.
0.2059 €
500 pcs.
0.1916 €
1000 pcs.
0.1725 €
*incl. VAT plus shipping costs
Subject to prior sale
Power key connector, 1-480318-4, AMP
The 1-480318-4 is a power key connector for power circuits of home appliances, especially targeting gas appliances. With a clear clicking sound, contact insertion can be made easy. The double lock plate provides for complete loading of contacts. Locking levers are surrounded by walls, which protect levers and prevent tangling with wires. This connector is designed to release bubbles created by the process of potting, housing lances also help prevent tangling of wired contacts.
Features
- Compact design with 19.4 mm mated height
- Power circuit connector with 5.0 mm contact centerline
Technical specifications
Filter | Property | Value |
---|---|---|
Grid | 5.08 mm | |
Contact type | socket | |
Version | plug housing | |
Rated voltage | 250 V | |
Orientation | straight | |
Type of locking | Yes | |
Number of rows | 1 | |
Colour | yellow | |
Pin number | 2 pole | |
Connection | crimp connection |
Download
Logistics
Property | Value |
---|---|
Country of origin | CN |
Customs tariff number | 85389099 |
Compliance
Property | Value |
---|---|
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
