1-480303-0 | AMP

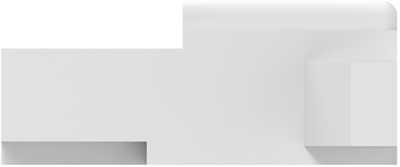

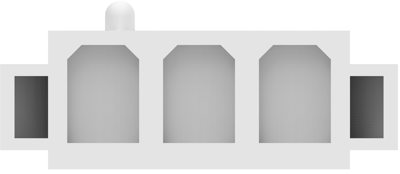

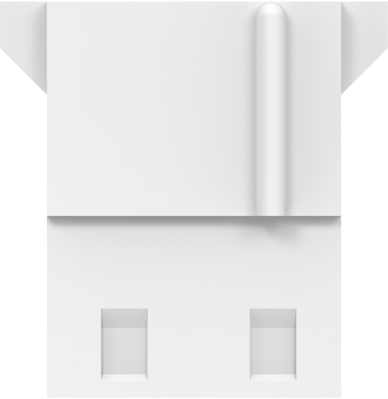

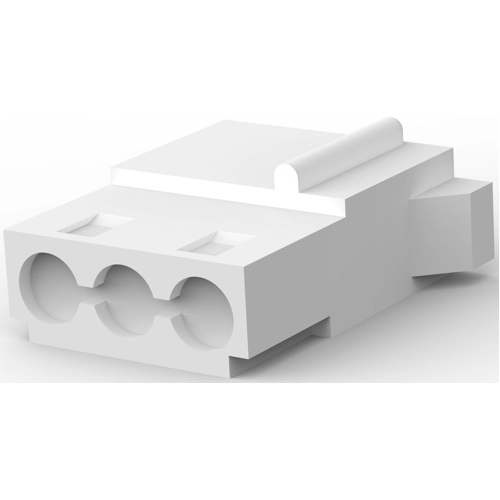

Socket housing, 3 pole, pitch 5.08 mm, straight, natural, 1-480303-0
Unit Price (€ / pc.)
0.5355 € *
Next delivery: 161 pcs. on 2026-03-19
Available in 5 Days: 10,127 pcs. - if ordered today
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5355 €
10 pcs.
0.4879 €
25 pcs.
0.4641 €
50 pcs.
0.4165 €
100 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale
Male and female contact housings, bare, 2 to 4 poles, type TE Connectivity/AMP 1-048.
To VDE 0110 group C. With polarized PA 6.6 housing to UL 94 V-2, without latching hook. Suitable as power connector for floppy disk drives. Corresponding snap-in crimp contacts are described below.
Female connector housings, type 1-048.
Technical attributes (type, number of poles, dimensions H/W/L): 1-0480303-0, 3-pole, 20.9/7.9/21.6 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Colour | natural | |
| Rated voltage | 250 V | |
| Connection | crimp connection | |
| Pin number | 3 pole | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Grid | 5.08 mm | |
| Version | socket housing | |
| Number of rows | 1 | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
