1-440146-0 | AMP

Socket housing, 10 pole, pitch 1.25 mm, straight, natural, 1-440146-0

Order No.: 37P1059
EAN: 4099889951653
MPN:
1-440146-0
AMP

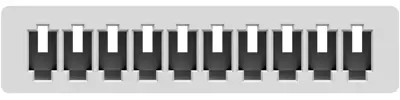

1-440146-0 AMP PCB Connection Systems Image 1

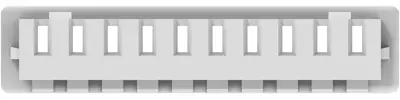

1-440146-0 AMP PCB Connection Systems Image 2

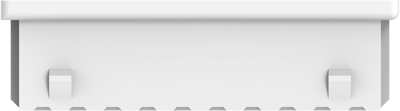

1-440146-0 AMP PCB Connection Systems Image 3

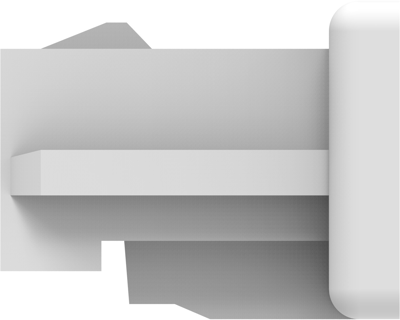

1-440146-0 AMP PCB Connection Systems Image 4

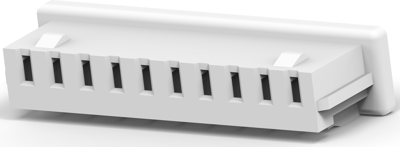

1-440146-0 AMP PCB Connection Systems Image 5
Image may differ
Print
Key Specification:
Version socket housing
Contact type socket
Pin number 10 pole
Grid 1.25 mm
Connection crimp connection

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.1131 € *
Available in 5 Days: 59,877 pcs. - if ordered today
Total Price:
226.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.1131 €
Description
Technical specifications
Download
Logistics
Compliance

PCB Connection System, 1-440146-0, AMP

Wire-to-Board, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Number of positions: 10
  • Operating Temperature Range: -40 – 85 °C [-40 – 185 °F]
  • Insulation Resistance: 100 MΩ
  • Centerline (Pitch): 1.25 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Rated voltage 150 V
Additional parts unequipped
Rated current 1 A
Grid 1.25 mm
Orientation straight
Version socket housing
Connection crimp connection
Contact type socket
Number of rows 1
Colour natural
Pin number 10 pole
Articles of same specification 0
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
