1-353046-3 | AMP

Plug housing, 3 pole, pitch 10.16 mm, straight, black, 1-353046-3

Order No.: 38P7429
EAN: 4099889976540
MPN:
1-353046-3
Series: DYNAMIC

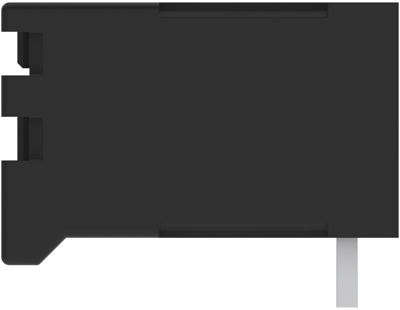

1-353046-3 AMP PCB Connection Systems Image 1

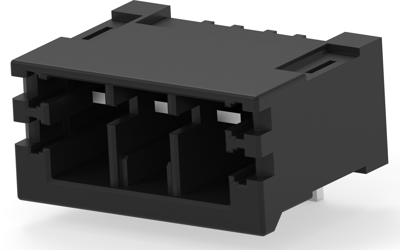

1-353046-3 AMP PCB Connection Systems Image 2

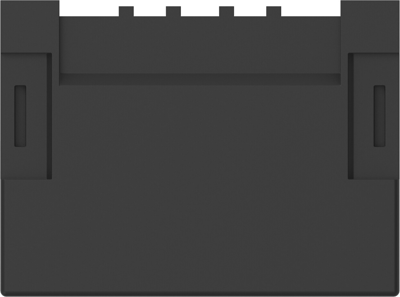

1-353046-3 AMP PCB Connection Systems Image 3

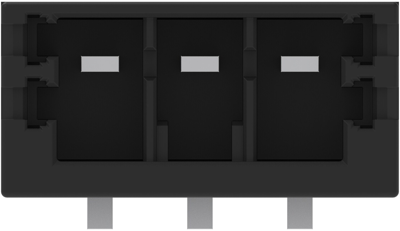

1-353046-3 AMP PCB Connection Systems Image 4

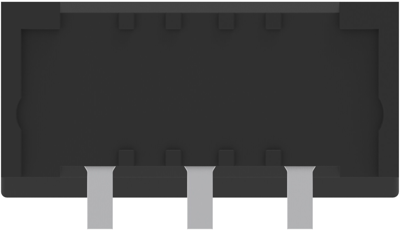

1-353046-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.2249 € *
Available in 5 Days: 558 pcs. - if ordered today
Total Price:
3.22 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2249 €
10 pcs.
2.9988 €
25 pcs.
2.7965 €
50 pcs.
2.5466 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-353046-3, AMP

Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 10.16 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Rated voltage 150 V
Version plug housing
Number of rows 1
Orientation straight
Additional parts unequipped
Pin number 3 pole
Grid 10.16 mm
Contact type pin
Colour black
Connection crimp connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
