1-353046-2 | AMP

Plug housing, 2 pole, pitch 10.16 mm, straight, black, 1-353046-2

Order No.: 38P7426
EAN: 4099889976519
MPN:
1-353046-2
Series: DYNAMIC

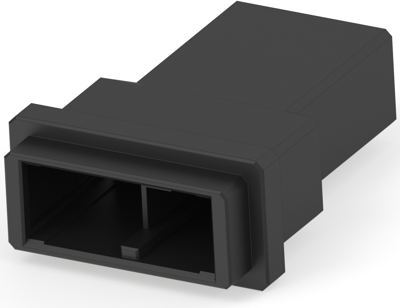

1-353046-2 AMP PCB Connection Systems Image 1

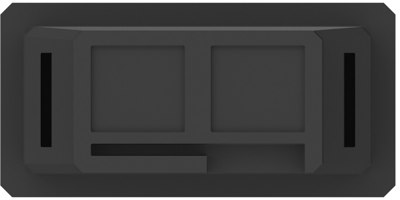

1-353046-2 AMP PCB Connection Systems Image 2

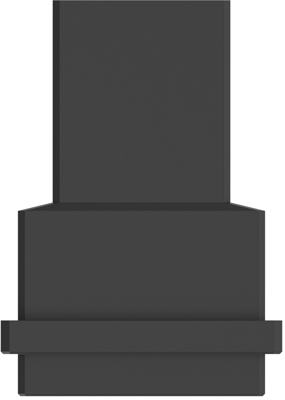

1-353046-2 AMP PCB Connection Systems Image 3

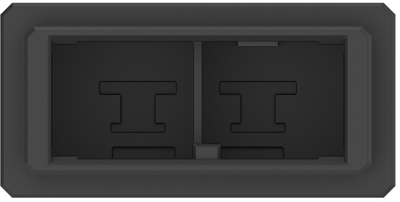

1-353046-2 AMP PCB Connection Systems Image 4

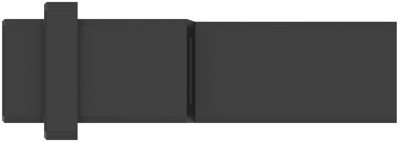

1-353046-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.7251 € *
Available in 5 Days: 2,145 pcs. - if ordered today
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
10 pcs.
2.5347 €
25 pcs.
2.3562 €
50 pcs.
2.1420 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-353046-2, AMP

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 10.16 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Version plug housing
Colour black
Pin number 2 pole
Additional parts unequipped
Connection crimp connection
Rated voltage 150 V
Contact type pin
Orientation straight
Grid 10.16 mm
Number of rows 1
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
