1-350943-0 | AMP

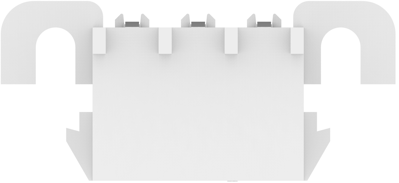

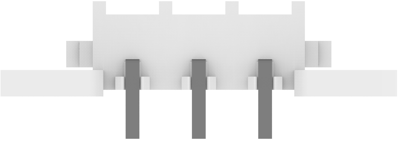

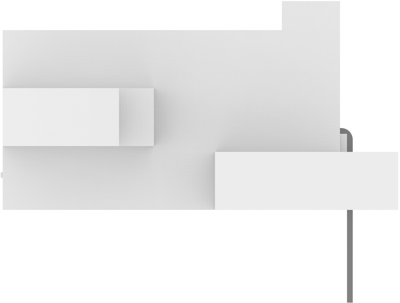

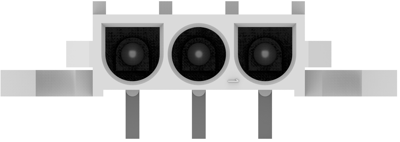

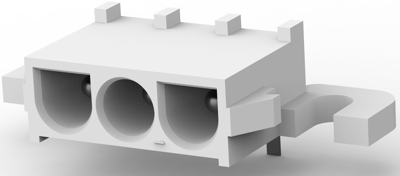

Pin header, 3 pole, pitch 6.35 mm, angled, natural, 1-350943-0

Order No.: 71F671
EAN: 4099891011765
MPN:
1-350943-0
1-0350943-0
1-350943-0 AMP PCB Connection Systems Image 1
1-350943-0 AMP PCB Connection Systems Image 2
1-350943-0 AMP PCB Connection Systems Image 3
1-350943-0 AMP PCB Connection Systems Image 4
1-350943-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9040 € *
Available: 426 pcs.
Available in 5 Days: 1,365 pcs. - if ordered today
Total Price:
9.52 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9040 €
10 pcs.
1.7612 €
25 pcs.
1.6422 €
50 pcs.
1.4875 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connectors, angled, for PCB soldering, type 1-035.

Made of polyamide, plain-colored, flame retardant in accordance with UL 94 V-0; Contact material: tin bronze, tinned.

Type: 1–0350943–0, 3–pole, dimension A 20.3, B 37.9 mm

Technical specifications
Filter Property Value
Grid 6.35 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 12 A
Rated voltage 600 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 3 pole
Connection solder pin
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
