1-350942-0 | AMP

Pin header, 2 pole, pitch 6.35 mm, angled, natural, 1-350942-0

Order No.: 71F670
EAN: 4099891011758
MPN:
1-350942-0
1-0350942-0

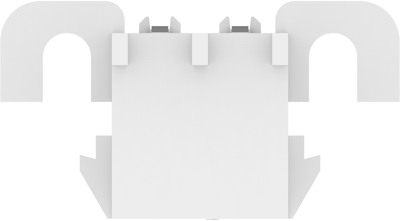

1-350942-0 AMP PCB Connection Systems Image 1

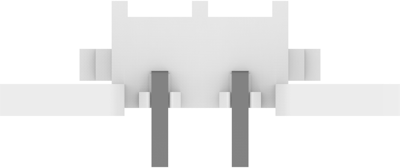

1-350942-0 AMP PCB Connection Systems Image 2

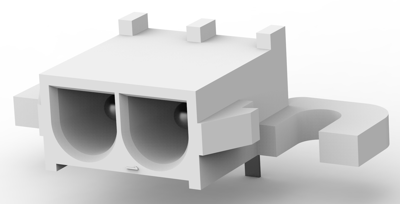

1-350942-0 AMP PCB Connection Systems Image 3

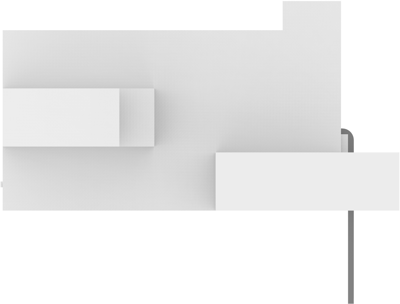

1-350942-0 AMP PCB Connection Systems Image 4

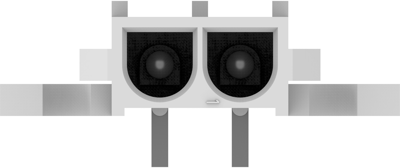

1-350942-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9873 € *
Next delivery: 274 pcs. on 2025-06-20
Available in 5 Days: 280 pcs. - if ordered today
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9873 €
10 pcs.
1.8445 €
50 pcs.
1.7136 €
100 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connectors, angled, for PCB soldering, type 1-035.

Made of polyamide, plain-colored, flame retardant in accordance with UL 94 V-0; Contact material: tin bronze, tinned.

Type: 1–0350942–0, 2–pole, dimension A 14.0, B 31.6 mm

Technical specifications
Number of rows 1
Grid 6.35 mm
Orientation angled
Pin number 2 pole
Connection solder pin
Type of locking Yes
Colour natural
Rated current 12 A
Additional parts equipped
Contact type pin
Version pin header
Connection plating tin-plated
contact surface tin-plated
Rated voltage 600 V
Logistics
Customs tariff number 85366930
Country of origin TW
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
