1-350782-9 | AMP

Socket housing, 9 pole, pitch 6.35 mm, straight, black, 1-350782-9

Order No.: 35P5028
EAN: 4099889936667
MPN:
1-350782-9

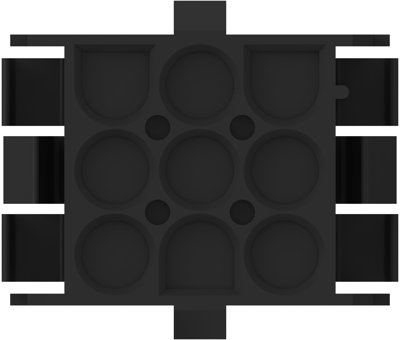

1-350782-9 AMP PCB Connection Systems Image 1

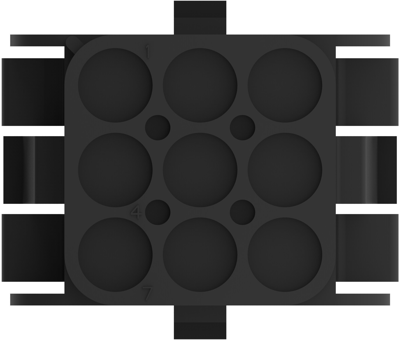

1-350782-9 AMP PCB Connection Systems Image 2

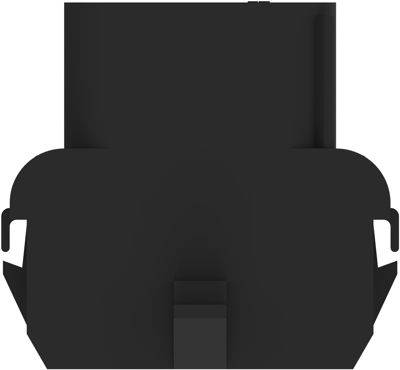

1-350782-9 AMP PCB Connection Systems Image 3

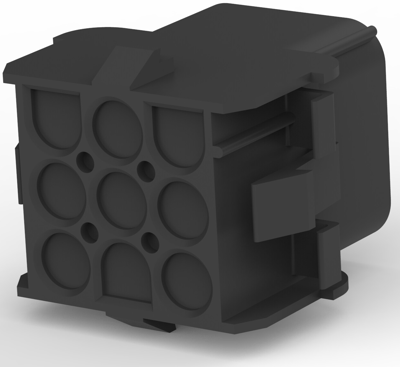

1-350782-9 AMP PCB Connection Systems Image 4

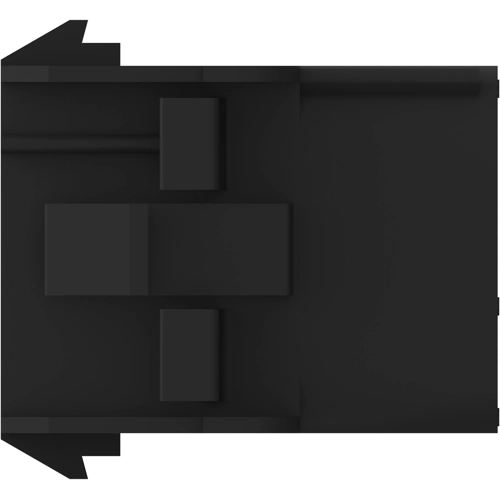

1-350782-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
2,134.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
3900 pcs.
0.5474 €

PCB Connection System, 1-350782-9, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 9
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour black
Type of locking Yes
Grid 6.35 mm
Pin number 9 pole
Version socket housing
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 3
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
