1-350779-9 | AMP

Plug housing, 4 pole, pitch 6.35 mm, straight, black, 1-350779-9

Order No.: 35P4978
EAN: 4099889936247
MPN:
1-350779-9

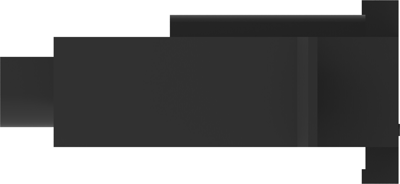

1-350779-9 AMP PCB Connection Systems Image 1

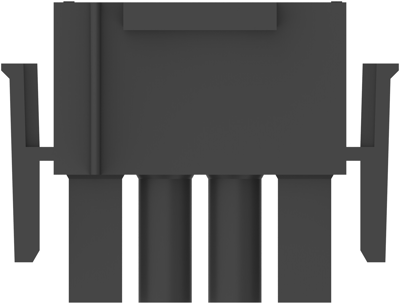

1-350779-9 AMP PCB Connection Systems Image 2

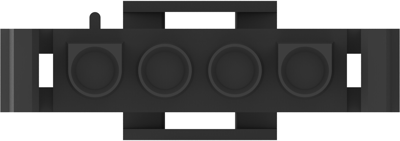

1-350779-9 AMP PCB Connection Systems Image 3

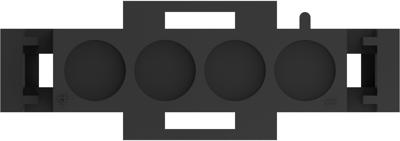

1-350779-9 AMP PCB Connection Systems Image 4

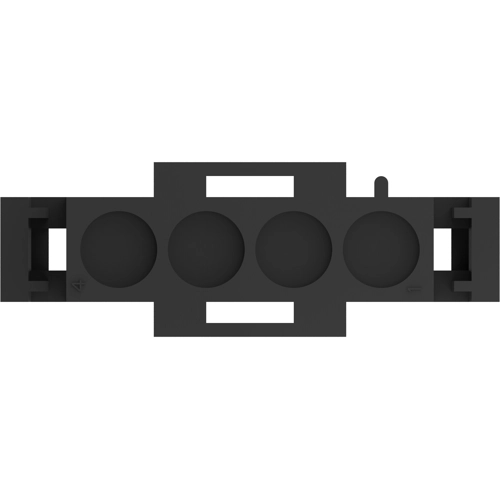

1-350779-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
2,570.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
8000 pcs.
0.3213 €

PCB Connection System, 1-350779-9, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 4
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Type of locking Yes
Contact type socket/pin
Colour black
Number of rows 1
Additional parts unequipped
Connection crimp connection
Orientation straight
Grid 6.35 mm
Rated voltage 600 V
Pin number 4 pole
Version plug housing
Logistics
Property Value
Country of origin CN
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
