1-350778-2 | AMP

Socket housing, 2 pole, pitch 6.35 mm, straight, red, 1-350778-2

Order No.: 35P4927
EAN: 4099889935745
MPN:
1-350778-2

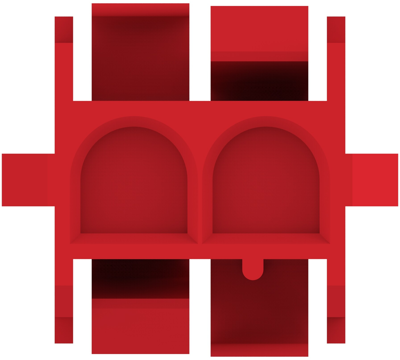

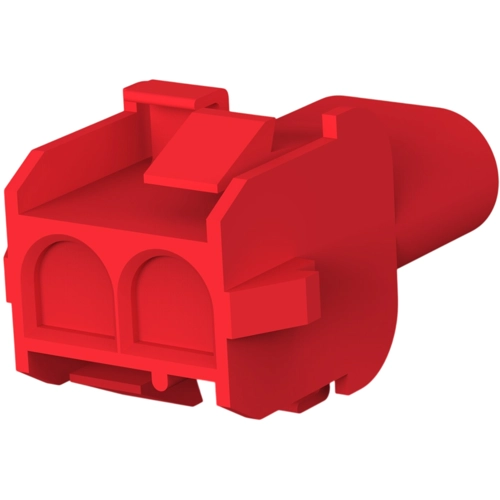

1-350778-2 AMP PCB Connection Systems Image 1

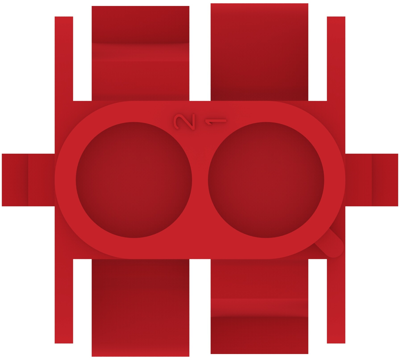

1-350778-2 AMP PCB Connection Systems Image 2

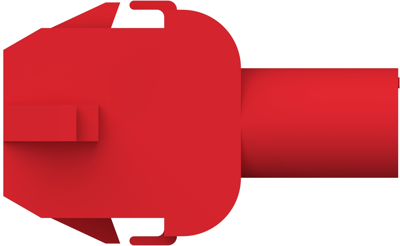

1-350778-2 AMP PCB Connection Systems Image 3

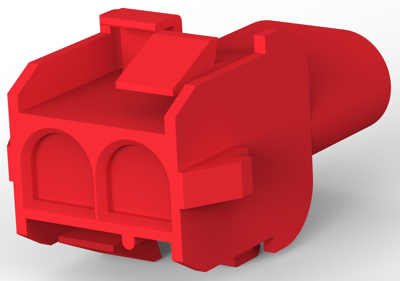

1-350778-2 AMP PCB Connection Systems Image 4

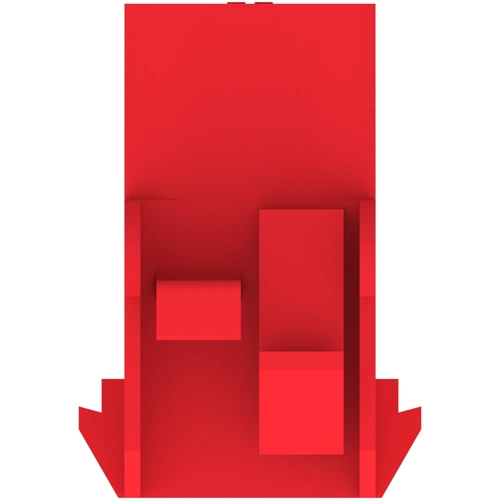

1-350778-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7259 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
0.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.7259 €

PCB Connection System, 1-350778-2, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: red
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour red
Type of locking Yes
Grid 6.35 mm
Pin number 2 pole
Version socket housing
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
