1-350766-9 | AMP

Plug housing, 3 pole, pitch 6.35 mm, straight, black, 1-350766-9

Order No.: 35P4955
EAN: 4099889936025
MPN:
1-350766-9

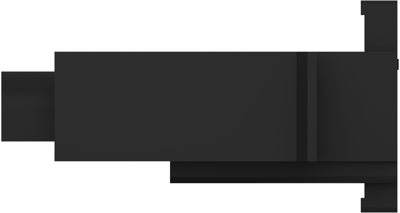

1-350766-9 AMP PCB Connection Systems Image 1

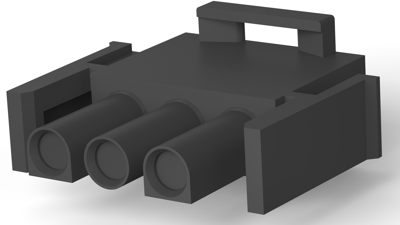

1-350766-9 AMP PCB Connection Systems Image 2

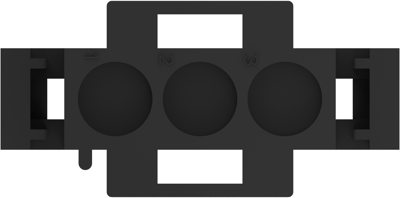

1-350766-9 AMP PCB Connection Systems Image 3

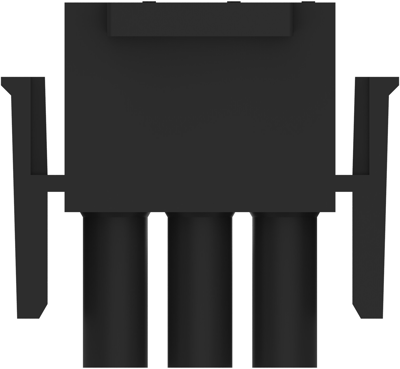

1-350766-9 AMP PCB Connection Systems Image 4

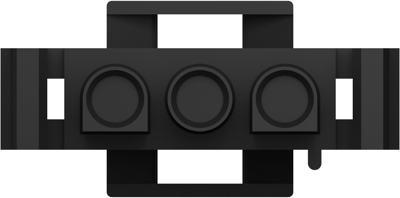

1-350766-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
10 pcs.
0.7021 €
50 pcs.
0.6426 €
100 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-350766-9, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour black
Type of locking Yes
Grid 6.35 mm
Pin number 3 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
