1-338095-0 | AMP

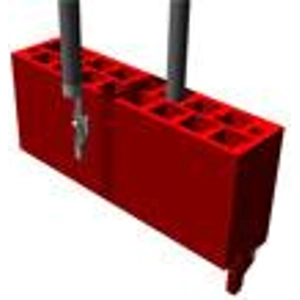

Plug housing, 10 pole, pitch 1.27 mm, straight, red, 1-338095-0
Unit Price (€ / pc.)
1.0115 € *
Available in 5 Days: 102,017 pcs. - if ordered today
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0115 €
10 pcs.
0.9401 €
25 pcs.
0.8687 €
50 pcs.
0.7973 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-338095-0, AMP
Wire-to-Board, Wire & Cable, 10 Position
Technical Data
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: PBT GF
- Housing Color: red
- Number of positions: 10
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 2 mm [0.059 in]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1.5 A | |
| contact surface | tin-plated | |
| Colour | red | |
| Additional parts | unequipped | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Grid | 1.27 mm | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| Connection | crimp connection | |
| Pin number | 10 pole | |
| Version | plug housing | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
