1-338068-0 | AMP

Socket housing, 10 pole, pitch 1.27 mm, straight, red, 1-338068-0

Order No.: 39P1948
EAN: 4099889977936
MPN:
1-338068-0
Series: Micro-MaTch

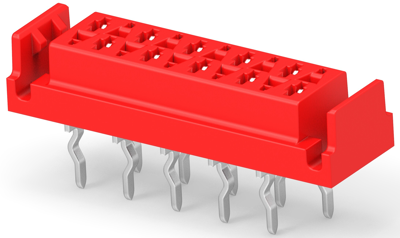

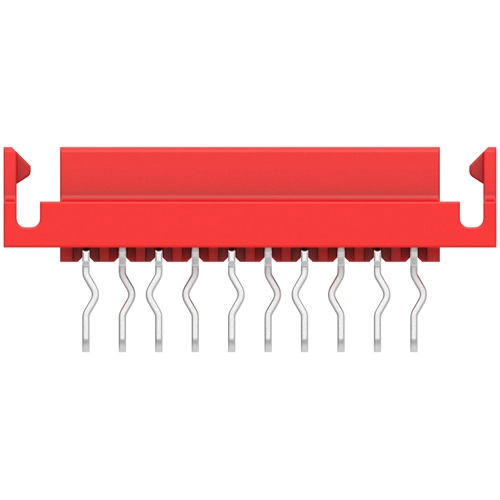

1-338068-0 AMP PCB Connection Systems Image 1

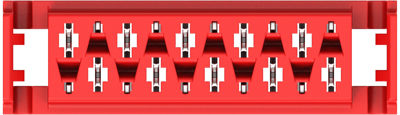

1-338068-0 AMP PCB Connection Systems Image 2

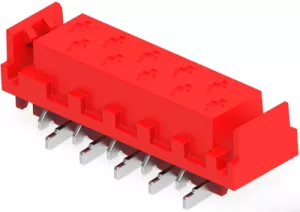

1-338068-0 AMP PCB Connection Systems Image 3

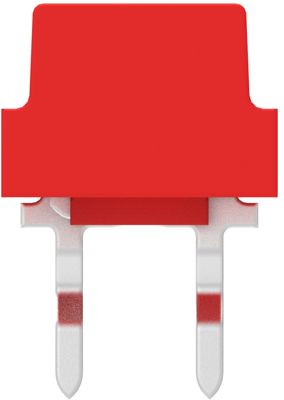

1-338068-0 AMP PCB Connection Systems Image 4

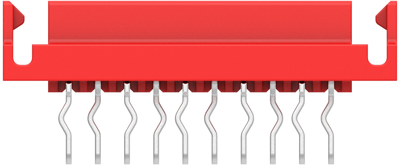

1-338068-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8806 € *
Available: 3,844 pcs.
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8806 €
10 pcs.
0.8211 €
25 pcs.
0.7616 €
50 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-338068-0, AMP

Board-to-Board, Printed Circuit Board, Vertical, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT GF
  • Housing Color: red
  • Orientation: straight
  • Number of positions: 10
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 1.27 mm
  • Row-to-Row Spacing: 2 mm [0.059 in]
  • PCB Mount Retention: With
Technical specifications
Filter Property Value
Grid 1.27 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket housing
Rated current 1 A
Rated voltage 100 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour red
Pin number 10 pole
Connection PCB connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Original Packaging Reel with 2,500 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
