1-292254-4 | AMP

Pin header, 14 pole, pitch 2 mm, straight, natural, 1-292254-4

Order No.: 36P7172
EAN: 4099889947656
MPN:
1-292254-4

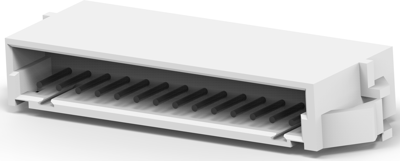

1-292254-4 AMP PCB Connection Systems Image 1

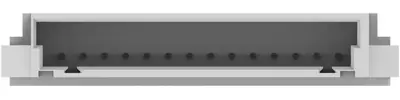

1-292254-4 AMP PCB Connection Systems Image 2

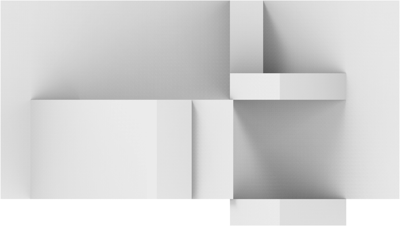

1-292254-4 AMP PCB Connection Systems Image 3

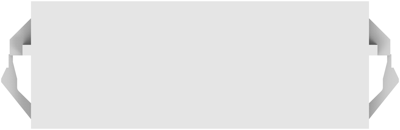

1-292254-4 AMP PCB Connection Systems Image 4
1-292254-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8683 € *
Available in 5 Days: 2,532 pcs. - if ordered today
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8683 €
10 pcs.
1.6898 €
50 pcs.
1.5232 €
100 pcs.
1.3685 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-292254-4, AMP

Wire-to-Panel, Wire-to-Board Connector Assemblies & Housings, 14 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Number of positions: 14
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 4 A
  • Centerline (Pitch): 2 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 4 A
Grid 2 mm
Pin number 14 pole
Version pin header
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
