1-292254-3 | AMP

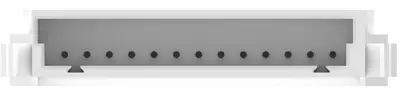

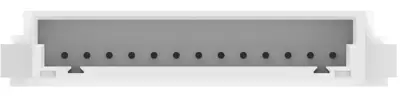

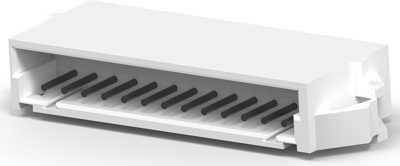

Pin header, 13 pole, pitch 2 mm, straight, natural, 1-292254-3
Unit Price (€ / pc.)
1.6898 € *
Available in 5 Days: 2,548 pcs. - if ordered today
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.5708 €
25 pcs.
1.4637 €
50 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector assembly, 1-292254-3, AMP
Connector assembly, Plug to Plug Relay header, Wire-to-Panel, 13 Position, 2 mm Centerline, 1 Row, Natural, Mating retention, Signal.
Applications
- Business Equipment
- Industrial Machines
- PC
- Audio
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder pin | |
| Rated voltage | 125 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 13 pole | |
| Additional parts | equipped | |
| Colour | natural | |
| Version | pin header | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
