1-292254-1 | AMP

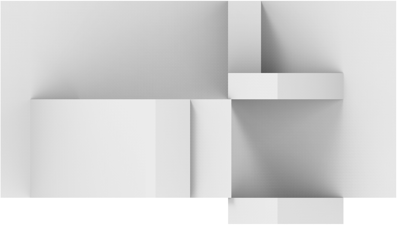

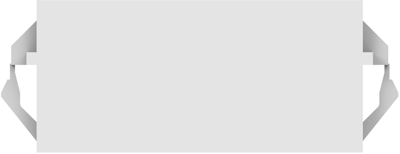

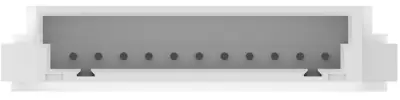

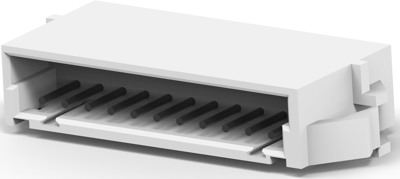

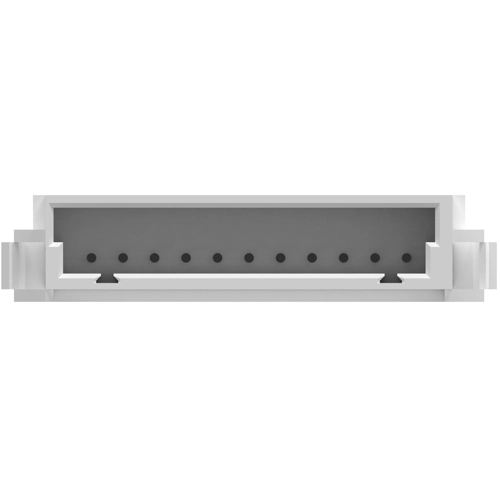

Pin header, 11 pole, pitch 2 mm, straight, natural, 1-292254-1
Order No.: 36P7170
EAN: 4099889947649
MPN:
1-292254-1
Unit Price (€ / pc.)
1.5113 € *
Available in 5 Days: 4,253 pcs. - if ordered today
Total Price:
1.51 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5113 €
10 pcs.
1.4042 €
25 pcs.
1.3090 €
50 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-292254-1, AMP
Wire-to-Panel, Wire-to-Board Connector Assemblies & Housings, 11 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon 66
- Housing Color: natural
- Number of positions: 11
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 4 A
- Centerline (Pitch): 2 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 4 A | |
| contact surface | tin-plated | |
| Colour | natural | |
| Contact type | pin | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| Connection | crimp connection | |
| Pin number | 11 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
