1-292183-2 | AMP

Pin header, 18 pole, pitch 2 mm, straight, black, 1-292183-2

Order No.: 36P9155
EAN: 4099889949452
MPN:
1-292183-2

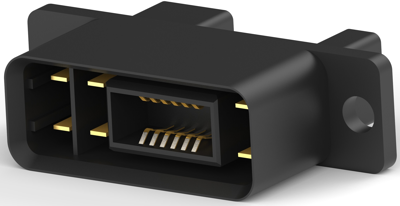

1-292183-2 AMP PCB Connection Systems Image 1

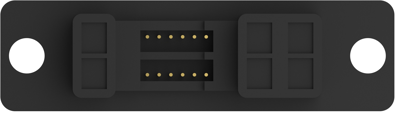

1-292183-2 AMP PCB Connection Systems Image 2

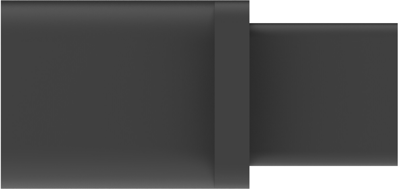

1-292183-2 AMP PCB Connection Systems Image 3

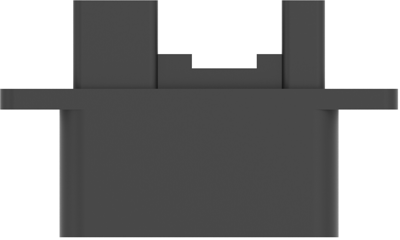

1-292183-2 AMP PCB Connection Systems Image 4

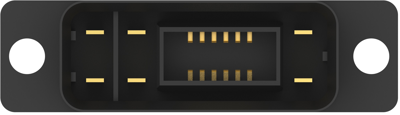

1-292183-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
12.852 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
2,570.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
12.852 €

PCB Connection System, 1-292183-2, AMP

Wire-to-Wire, Wire & Cable, 18 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Number of positions: 18
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Insulation Resistance: 100 MΩ
  • Centerline (Pitch): 2 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour black
contact surface gold-plated
Rated current 15 A
Grid 2 mm
Pin number 18 pole
Version pin header
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 150 V
Number of rows 2
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
