1-292161-5 | AMP

Pin header, 15 pole, pitch 2 mm, straight, natural, 1-292161-5

Order No.: 36P7212
EAN: 4099889947946
MPN:
1-292161-5

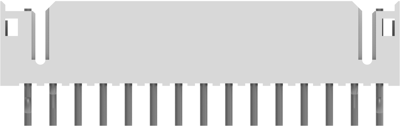

1-292161-5 AMP PCB Connection Systems Image 1

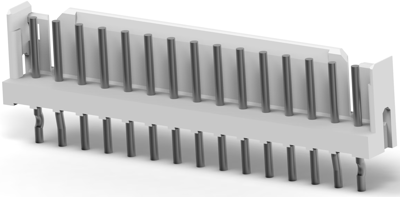

1-292161-5 AMP PCB Connection Systems Image 2

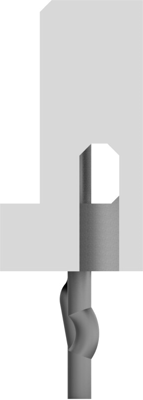

1-292161-5 AMP PCB Connection Systems Image 3

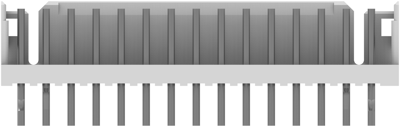

1-292161-5 AMP PCB Connection Systems Image 4
1-292161-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Available in 5 Days: 23,019 pcs. - if ordered today
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
10 pcs.
1.1900 €
50 pcs.
1.0710 €
100 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-292161-5, AMP

Wire-to-Board, Printed Circuit Board, Partially Shrouded, Vertical, 15 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 15
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 4 A
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 4 A
Grid 2 mm
Connection plating tin-plated
Pin number 15 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin IN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
