1-284338-3 | AMP

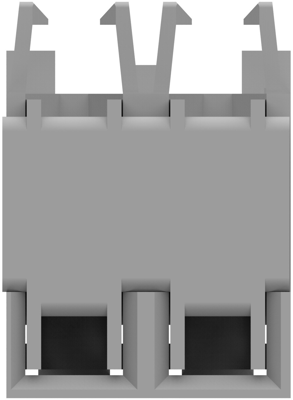

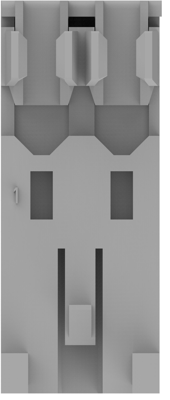

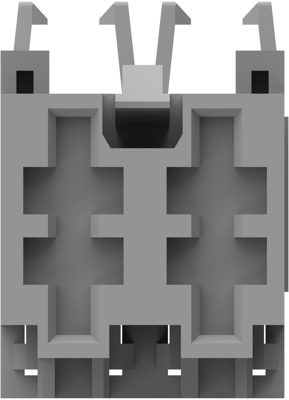

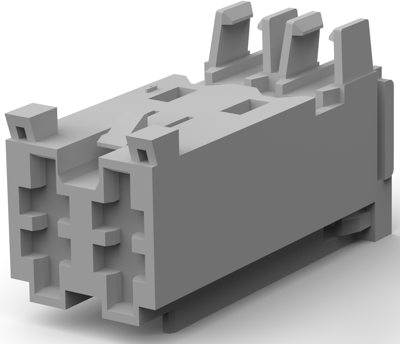

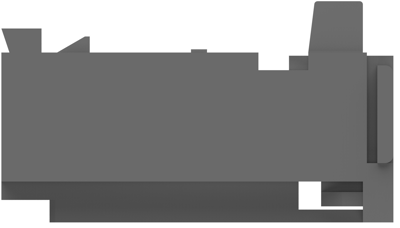

Socket header, 2 pole, pitch 5 mm, straight, red, 1-284338-3
Unit Price (€ / pc.)
0.2237 € *
Available in 5 Days: 6,255 pcs. - if ordered today
Total Price:
22.37 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2237 €
250 pcs.
0.2059 €
500 pcs.
0.1916 €
1000 pcs.
0.1725 €
*incl. VAT plus shipping costs
Subject to prior sale
Rectangular connector, 1-284338-3, AMP
Standard rectangular connector, Connector assembly, Receptacle, Mating alignment, Polarization mating alignment type.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 10 A | |
| Rated voltage | 240 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | red | |
| Pin number | 2 pole | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
