1-282045-2 | AMP

Socket housing, 5 pole, pitch 5 mm, straight, green, 1-282045-2

Order No.: 35P3985
EAN: 4099889932041
MPN:
1-282045-2

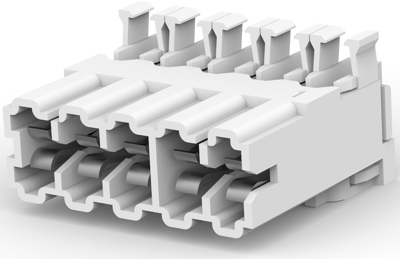

1-282045-2 AMP PCB Connection Systems Image 1

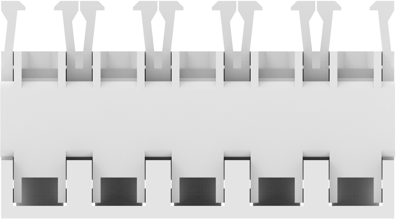

1-282045-2 AMP PCB Connection Systems Image 2

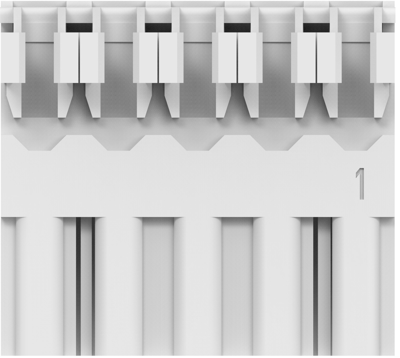

1-282045-2 AMP PCB Connection Systems Image 3

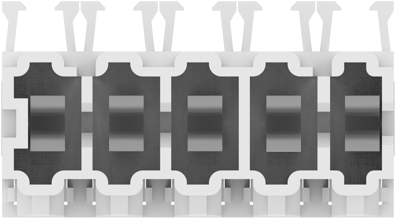

1-282045-2 AMP PCB Connection Systems Image 4

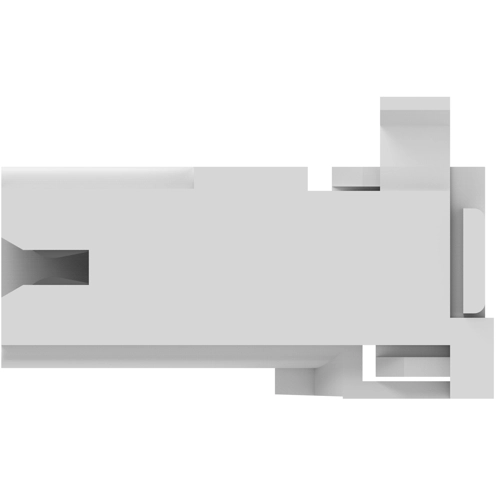

1-282045-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
1,485.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
2600 pcs.
0.5712 €

PCB Connection System, 1-282045-2, AMP

Wire-to-Board, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Brass
  • Housing Material: PA 6.6 GF
  • Housing Color: green
  • Orientation: straight
  • Number of positions: 5
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 6 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour green
contact surface tin-plated
Rated current 6 A
Grid 5 mm
Connection plating tin-plated
Pin number 5 pole
Version socket housing
Additional parts equipped
Orientation straight
Connection IDC connection
Contact type socket
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin IN
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
