1-282004-1 | AMP

Socket header, 4 pole, pitch 5 mm, angled, gray, 1-282004-1

Order No.: 35P3992
EAN: 4099889932119
MPN:
1-282004-1
Series: RAST 5

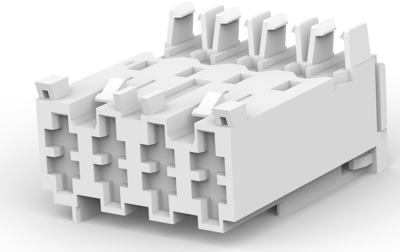

1-282004-1 AMP PCB Connection Systems Image 1

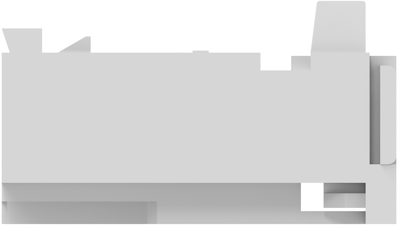

1-282004-1 AMP PCB Connection Systems Image 2

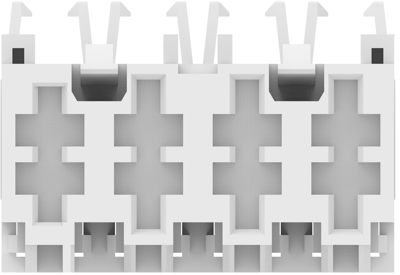

1-282004-1 AMP PCB Connection Systems Image 3

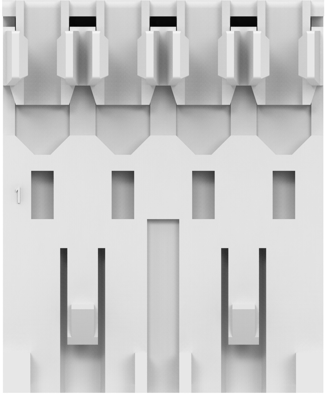

1-282004-1 AMP PCB Connection Systems Image 4

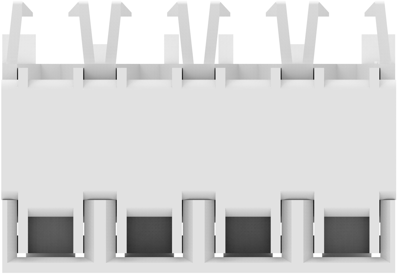

1-282004-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1,485.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
3120 pcs.
0.4760 €

PCB Connection System, 1-282004-1, AMP

Wire-to-Board, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: PA 6.6
  • Housing Color: gray
  • Number of positions: 4
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 16 A
  • Centerline (Pitch): 5 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour gray
Type of locking Yes
contact surface tin-plated
Rated current 16 A
Grid 5 mm
Connection plating tin-plated
Pin number 4 pole
Version socket header
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin IN
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
