1-216093-6 | AMP
Pin header, 16 pole, pitch 2.54 mm, straight, gray, 1-216093-6
Unit Price (€ / pc.)
2.3086 € *
Available in 5 Days: 14,950 pcs. - if ordered today
Total Price:
11.54 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3086 €
10 pcs.
2.1420 €
25 pcs.
1.9873 €
50 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale
Solder pins without beads, type ..-0216.
Contacts: tin bronze. The female connectors are delivered ready for operation. Additional available system components: male connectors for insertion in DIP sockets or for direct soldering to printed circuit boards, male connectors for direct soldering to PCBs with 2.54 mm grid and also cable-to-board connectors for direct insertion on PCB traces. Number of poles: 10 to 64. Operating current: max. 1.0 A. Dielectric strength: 500 VAC. Operating temperatures: - 55 to +105 °C. Standards and certifications: DIN 41651, 41611 T6, ULE 28476, MiL-C-83503.

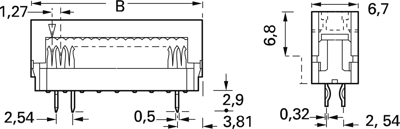

Type: 1-0216093-6, 16-pole, B 25.4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 1 A | |
| Rated voltage | 50 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | gray | |
| Pin number | 16 pole | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
