1-215915-0 | AMP

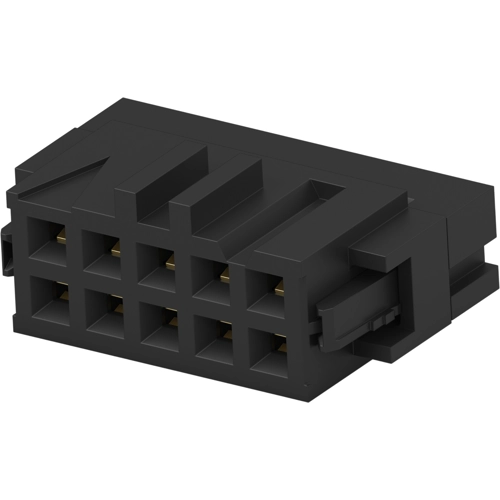

Socket housing, 10 pole, pitch 2.54 mm, angled, gray, 1-215915-0
Unit Price (€ / pc.)
1.5351 € *
Available in 5 Days: 4,975 pcs. - if ordered today
PCB Connection System, 1-215915-0, AMP
Wire-to-Board, Wire & Cable, 10 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Color: gray
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 1 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 150 V | |
| Orientation | angled | |
| Pin number | 10 pole | |
| Version | socket housing | |
| Colour | gray | |
| Grid | 2.54 mm | |
| Rated current | 1 A | |
| Contact type | socket | |
| Number of rows | 2 | |
| Connection | IDC connection | |
| Connection plating | gold-plated | |
| contact surface | gold-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
