1-215464-0 | AMP

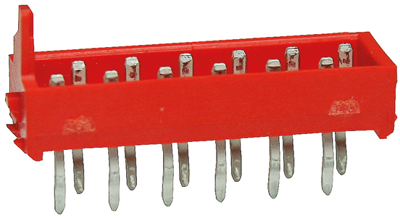

Pin header, 10 pole, pitch 1.27 mm, straight, red, 1-215464-0

Order No.: 58F4226
EAN: 4099891002619
MPN:
1-215464-0
1-0215464-0
Series: Micro-MaTch
1-215464-0 AMP PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 38 Weeks
Total Price:
1,933.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
0.7735 €

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

PCB male connectors, male

For PCB mounting.

Technical attributes (type, number of poles): 1-0215464-0, 10-pole

Technical specifications
Filter Property Value
Rated voltage 230 V
Orientation straight
Pin number 10 pole
Version pin header
Colour red
Grid 1.27 mm
Rated current 1.5 A
Type of locking Yes
Contact type pin
Number of rows 2
Connection PCB connection
Connection plating tin-plated
contact surface tin-plated
Additional parts equipped
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
