1-215460-6 | AMP

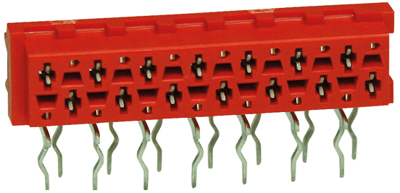

Socket header, 16 pole, pitch 1.27 mm, angled, red, 1-215460-6

Order No.: 58F4212
EAN: 4099891002558
MPN:
1-215460-6
Series: Micro-MaTch
1-215460-6 AMP PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Available in 5 Days: 2,500 pcs. - if ordered today
Total Price:
3,302.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
1.3209 €

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

PCB female connectors, angled

For PCB mounting.

Technical attributes (type, number of poles): 1-0215460-6, 16-pole

Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 1.5 A
Grid 1.27 mm
Pin number 16 pole
Version socket header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type socket
Rated voltage 100 V
Number of rows 2
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
