1-215083-8 | AMP

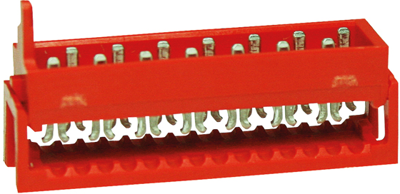

Pin header, 18 pole, pitch 1.27 mm, straight, red, 1-215083-8
Unit Price (€ / pc.)
1.3209 € *
Standard delivery time from the manufacturer is: On Request
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Male-on-wire connectors.
Technical attributes (type, number of poles): 1-0215083-8, 18-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1.5 A | |
| contact surface | tin-plated | |
| Colour | red | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 1.27 mm | |
| Orientation | straight | |
| Rated voltage | 100 V | |
| Connection | IDC connection | |
| Pin number | 18 pole | |
| Version | pin header | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 2,500 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
