1-215083-6 | AMP

Pin header, 16 pole, pitch 1.27 mm, straight, red, 1-215083-6

Order No.: 58F4252
EAN: 4099891002749
MPN:
1-215083-6
1-0215083-6
Series: Micro-MaTch

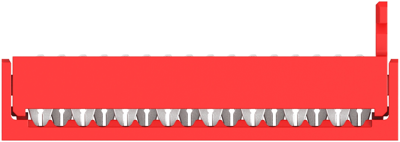

1-215083-6 AMP PCB Connection Systems Image 1

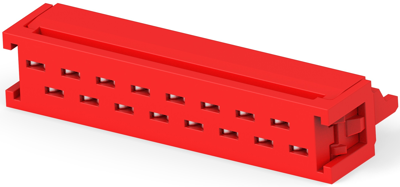

1-215083-6 AMP PCB Connection Systems Image 2

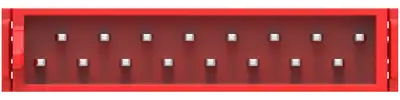

1-215083-6 AMP PCB Connection Systems Image 3

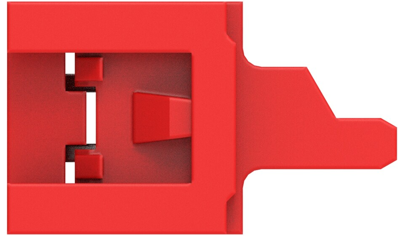

1-215083-6 AMP PCB Connection Systems Image 4

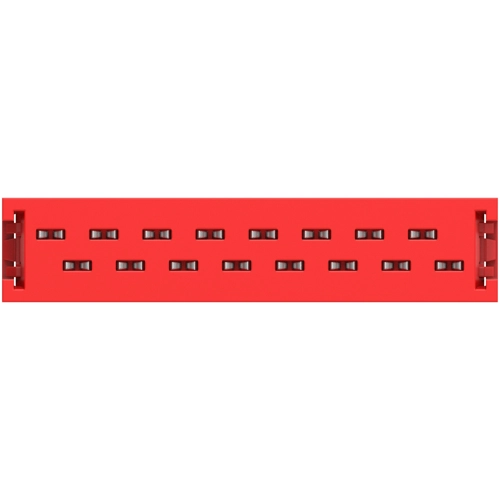

1-215083-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1186 € *
Available: 775 pcs.
Available in 5 Days: 2,500 pcs. - if ordered today
Total Price:
5.59 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1186 €
10 pcs.
1.0353 €
25 pcs.
0.9639 €
50 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Male-on-wire connectors.

Technical attributes (type, number of poles): 1-0215083-6, 16-pole

Technical specifications
Filter Property Value
Grid 1.27 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 1.5 A
Rated voltage 100 V
Orientation straight
Additional parts equipped
Number of rows 2
Colour red
Pin number 16 pole
Connection IDC connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Original Packaging Reel with 2,500 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
