1-207524-0 | AMP

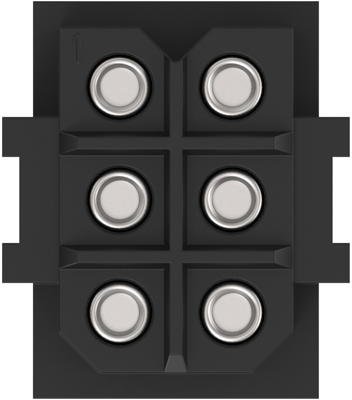

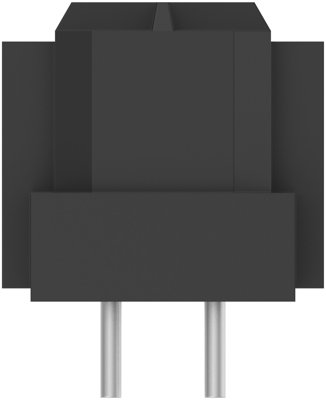

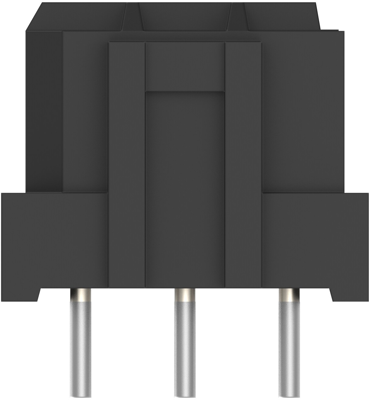

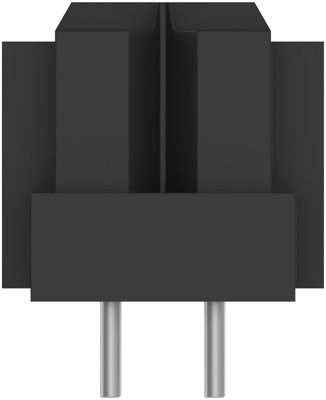

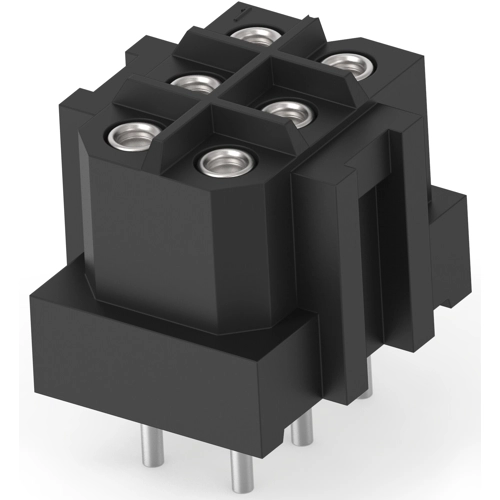

Pin header, 6 pole, pitch 5 mm, straight, red, 1-207524-0
Unit Price (€ / pc.)
13.0067 € *
Standard delivery time from the manufacturer is: 36 Weeks
PCB Connection System, 1-207524-0, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 6 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: Nylon GF
- Housing Color: red
- Orientation: straight
- Number of positions: 6
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 5 mm
- Row-to-Row Spacing: 5 mm [0.197 in]
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Grid | 5 mm | |
| Colour | red | |
| Type of locking | Yes | |
| Rated current | 7.5 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 6 pole | |
| Rated voltage | 150 V | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
