1-1863006-2 | AMP

Socket housing, 12 pole, pitch 6.35 mm, straight, natural, 1-1863006-2

Order No.: 35P5085
EAN: 4099889937107
MPN:
1-1863006-2

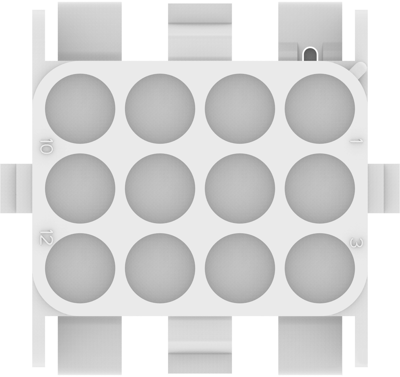

1-1863006-2 AMP PCB Connection Systems Image 1

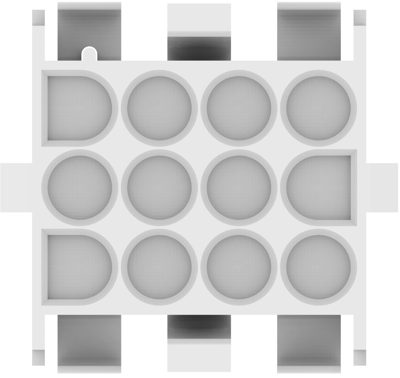

1-1863006-2 AMP PCB Connection Systems Image 2

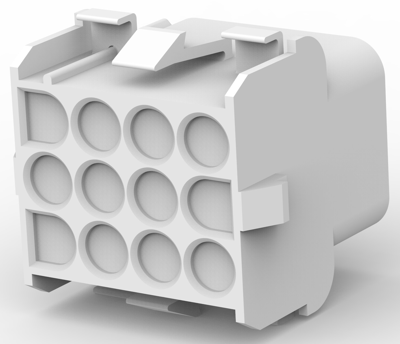

1-1863006-2 AMP PCB Connection Systems Image 3

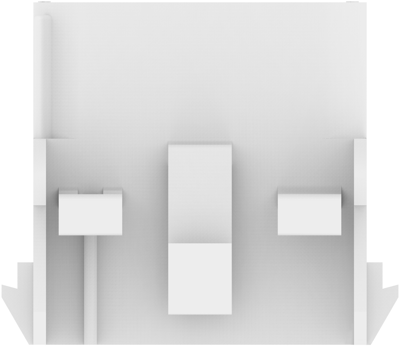

1-1863006-2 AMP PCB Connection Systems Image 4

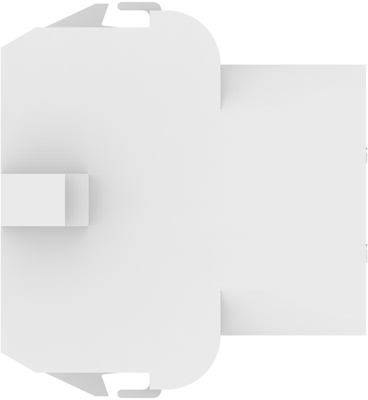

1-1863006-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8330 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.7497 €
50 pcs.
0.6783 €
100 pcs.
0.6069 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1863006-2, AMP

Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: PA 66
  • Housing Color: natural
  • Number of positions: 12
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour natural
Type of locking Yes
Grid 6.35 mm
Pin number 12 pole
Version socket housing
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 3
Logistics
Country of origin IN
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
