1-1863005-2 | AMP

Plug housing, 12 pole, pitch 6.35 mm, straight, natural, 1-1863005-2

Order No.: 35P5086
EAN: 4099889937114
MPN:
1-1863005-2

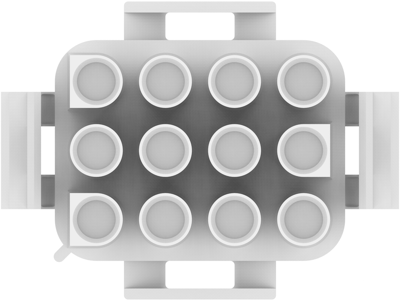

1-1863005-2 AMP PCB Connection Systems Image 1

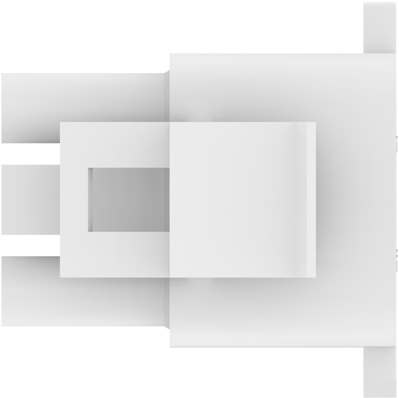

1-1863005-2 AMP PCB Connection Systems Image 2

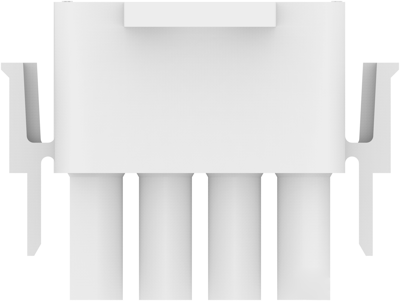

1-1863005-2 AMP PCB Connection Systems Image 3

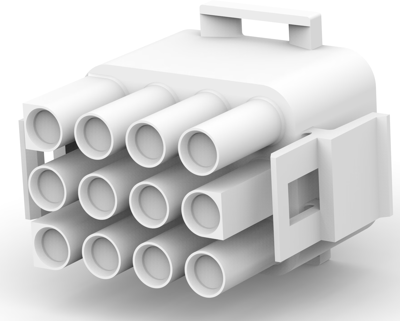

1-1863005-2 AMP PCB Connection Systems Image 4

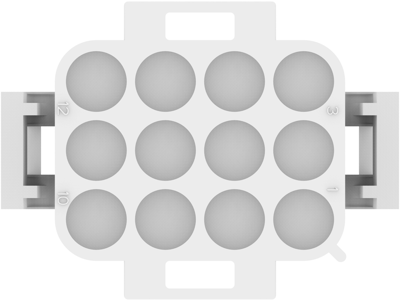

1-1863005-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0353 € *
Available in 5 Days: 4,950 pcs. - if ordered today
Total Price:
1.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.0353 €

PCB Connection System, 1-1863005-2, TE Connectivity

Wire-to-Board, Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: PA 66
  • Housing Color: natural
  • Number of positions: 12
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Colour natural
Type of locking Yes
Grid 6.35 mm
Pin number 12 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 3
Logistics
Property Value
Country of origin IN
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
