1-179555-6 | AMP

Plug housing, 12 pole, pitch 5.08 mm, straight, black, 1-179555-6

Order No.: 38P7232
EAN: 4099889975420
MPN:
1-179555-6
Series: DYNAMIC

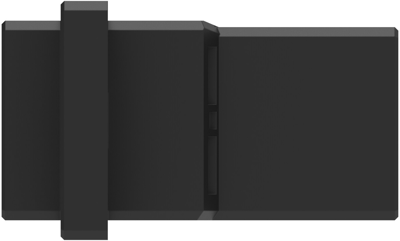

1-179555-6 AMP PCB Connection Systems Image 1

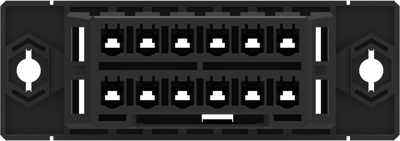

1-179555-6 AMP PCB Connection Systems Image 2

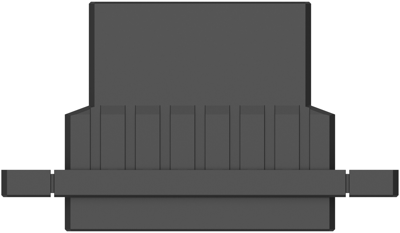

1-179555-6 AMP PCB Connection Systems Image 3

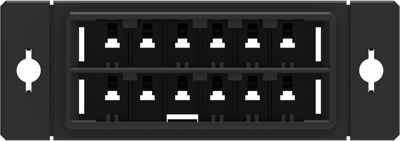

1-179555-6 AMP PCB Connection Systems Image 4

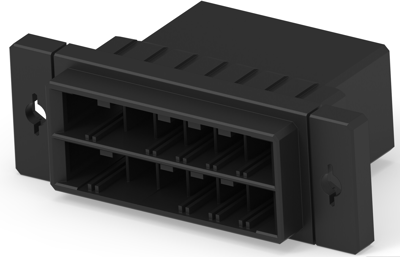

1-179555-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.4026 € *
Available in 5 Days: 185 pcs. - if ordered today
Total Price:
5.40 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4026 €
10 pcs.
5.0099 €
25 pcs.
4.6767 €
50 pcs.
4.2602 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-179555-6, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 5.08 mm
  • Row-to-Row Spacing: 7.62 mm [0.299 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Contact type pin
Orientation straight
Rated voltage 600 V
Version plug housing
Grid 5.08 mm
Colour black
Connection crimp connection
Number of rows 2
Pin number 12 pole
Logistics
Property Value
Country of origin IN
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
