1-178802-7 | AMP

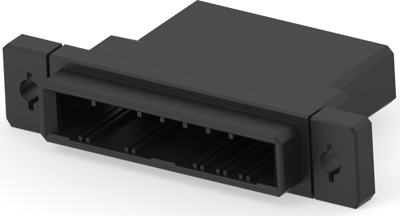

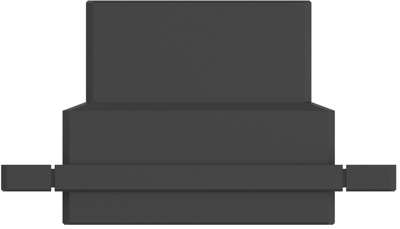

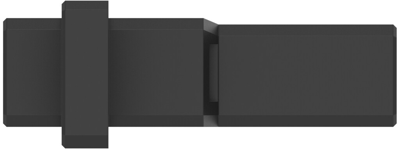

Plug housing, 8 pole, pitch 3.81 mm, straight, black, 1-178802-7
Unit Price (€ / pc.)
3.3439 € *
Available in 5 Days: 4,878 pcs. - if ordered today
Total Price:
3.34 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3439 €
10 pcs.
3.1059 €
25 pcs.
2.8917 €
50 pcs.
2.6299 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-178802-7, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 3.81 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | black | |
| Pin number | 8 pole | |
| Contact type | pin | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Version | plug housing | |
| Number of rows | 1 | |
| Grid | 3.81 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
