1-178298-2 | AMP

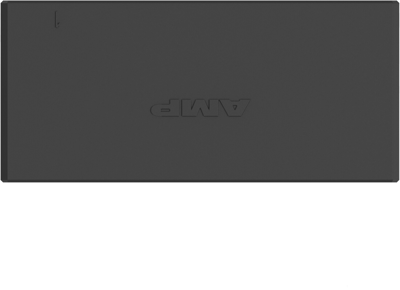

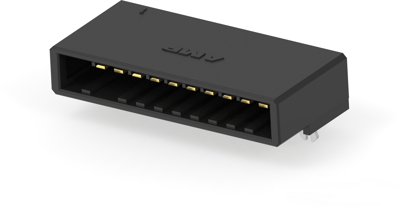

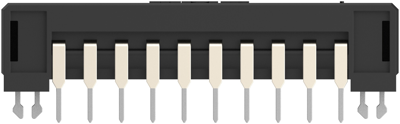

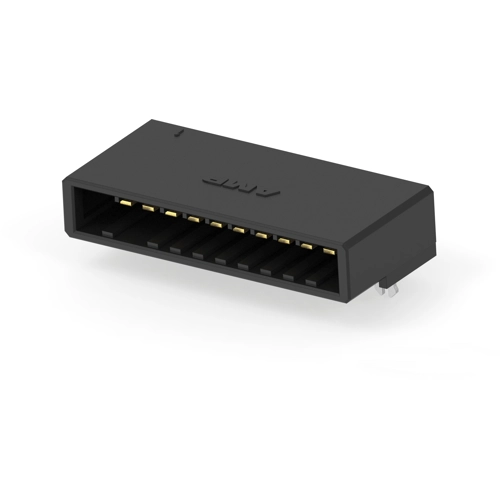

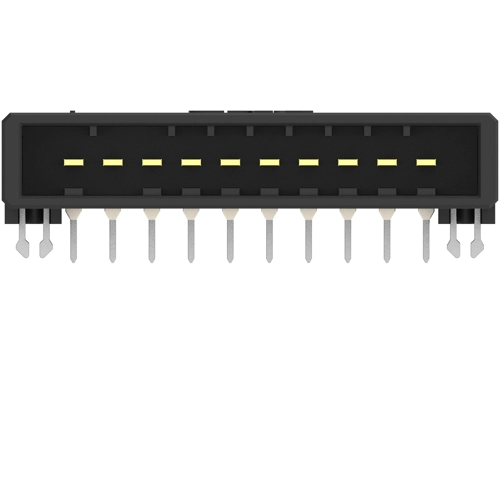

Pin header, 10 pole, pitch 3.81 mm, angled, black, 1-178298-2
Order No.: 59F330
MPN:
1-178298-2
Unit Price (€ / pc.)
6.9496 € *
Available in 5 Days: 16,260 pcs. - if ordered today
Total Price:
6.95 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9496 €
5 pcs.
6.5807 €
10 pcs.
6.1642 €
25 pcs.
5.6168 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 1-178298-2, AMP
PCB mount header, horizontal, Wire-to-Board, 10 Positions, 3.81 mm centerline, Fully Shrouded, Gold (Au).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Colour | black | |
| Pin number | 10 pole | |
| Contact type | pin | |
| Orientation | angled | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| contact surface | gold-plated | |
| Version | pin header | |
| Rated current | 8 A | |
| Number of rows | 1 | |
| Grid | 3.81 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
