1-178288-7 | AMP

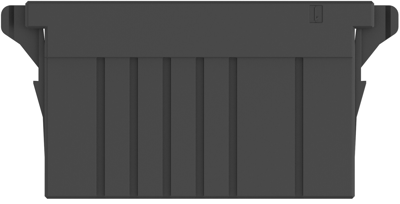

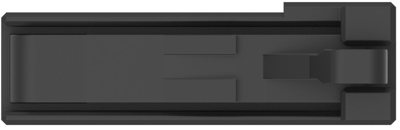

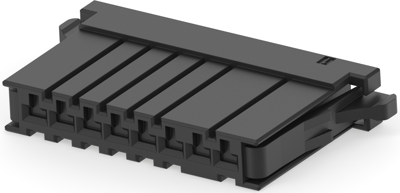

Socket header, 8 pole, pitch 3.81 mm, straight, black, 1-178288-7
Unit Price (€ / pc.)
1.2376 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2376 €
10 pcs.
1.1424 €
25 pcs.
1.0710 €
50 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-178288-7, AMP
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 3.81 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Contact type | socket | |
| Version | socket header | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 8 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
