1-178138-5 | AMP

Pin header, 3 pole, pitch 5.08 mm, angled, black, 1-178138-5

Order No.: 38P7067
EAN: 4099889974850
MPN:
1-178138-5
Series: DYNAMIC
1-178138-5 AMP PCB Connection Systems Image 1

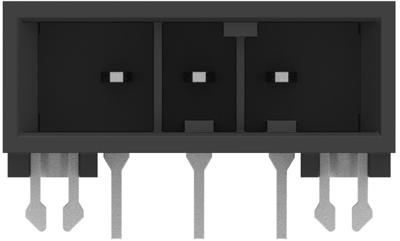

1-178138-5 AMP PCB Connection Systems Image 2

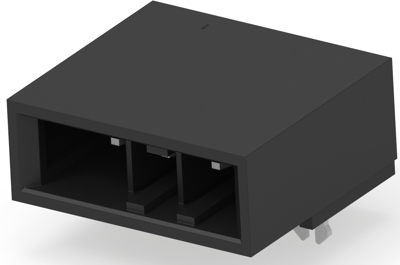

1-178138-5 AMP PCB Connection Systems Image 3

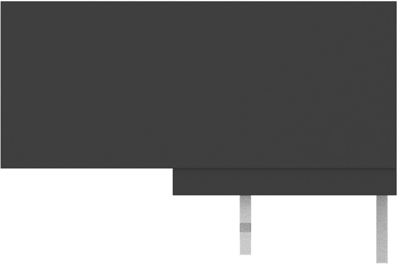

1-178138-5 AMP PCB Connection Systems Image 4

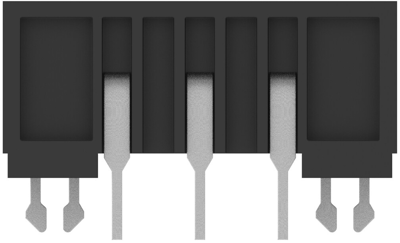

1-178138-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.6779 € *
Available in 5 Days: 3,360 pcs. - if ordered today
Total Price:
1.68 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6779 €
10 pcs.
1.5351 €
50 pcs.
1.3804 €
100 pcs.
1.2376 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-178138-5, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 5.08 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Version pin header
Contact type pin
Pin number 3 pole
Grid 5.08 mm
Connection PCB connection
Orientation angled
Type of locking Yes
contact surface gold-plated
Connection plating tin-plated
Rated voltage 600 V
Rated current 12 A
Additional parts equipped
Number of rows 1
Breakable No
Colour black
Logistics
Property Value
Customs tariff number 85366990
Country of origin IN
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
