1-177537-0 | AMP

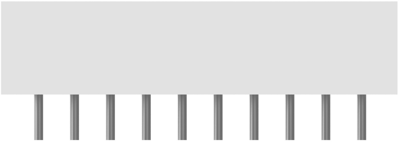

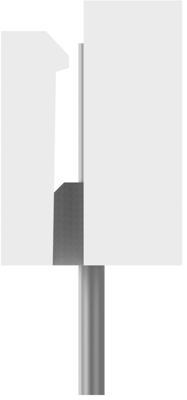

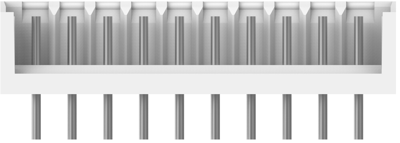

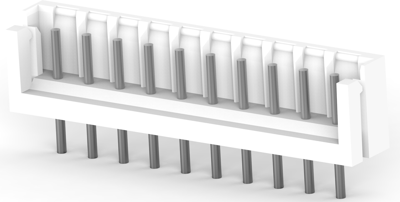

Pin header, 10 pole, pitch 2.5 mm, straight, natural, 1-177537-0
Order No.: 37P1072
EAN: 4099889951769
MPN:
1-177537-0
Unit Price (€ / pc.)
0.3808 € *
Available in 5 Days: 12,633 pcs. - if ordered today
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3808 €
10 pcs.
0.3451 €
25 pcs.
0.3213 €
50 pcs.
0.2951 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-177537-0, AMP
Wire-to-Board, Printed Circuit Board, Partially Shrouded, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: 66 Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -25 – 105 °C [-25 – 221 °F]
- Rated current: 4 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | pin | |
| Connection plating | pre-tinned | |
| contact surface | pre-tinned | |
| Version | pin header | |
| Rated current | 4 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 10 pole | |
| Connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
