1-1761681-3 | AMP

Pin header, 40 pole, pitch 2.54 mm, straight, black, 1-1761681-3

Order No.: 36P5275
EAN: 4099889942385
MPN:
1-1761681-3
Series: AMP-LATCH

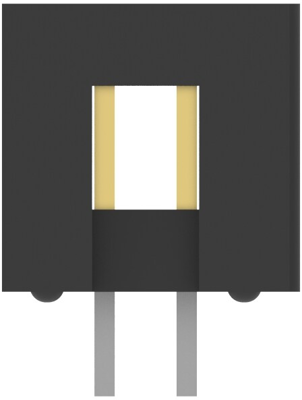

1-1761681-3 AMP PCB Connection Systems Image 1

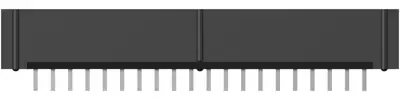

1-1761681-3 AMP PCB Connection Systems Image 2

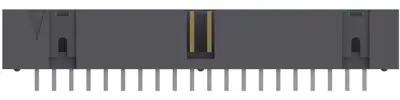

1-1761681-3 AMP PCB Connection Systems Image 3

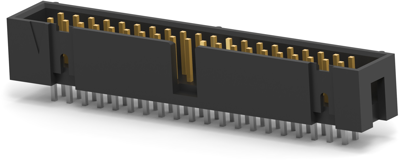

1-1761681-3 AMP PCB Connection Systems Image 4

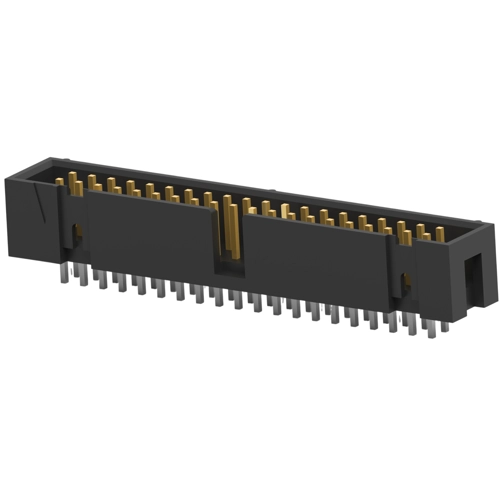

1-1761681-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.1646 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
10,329.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
5.1646 €

PCB Connection System, 1-1761681-3, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 40 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PCT
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 40
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 40 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
