1-1761606-5 | AMP

Pin header, 50 pole, pitch 2.54 mm, straight, black, 1-1761606-5

Order No.: 36P5231
EAN: 4099889942040
MPN:
1-1761606-5
Series: AMP-LATCH

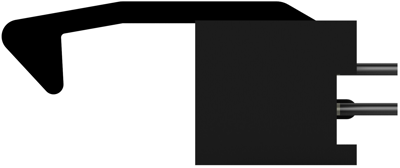

1-1761606-5 AMP PCB Connection Systems Image 1

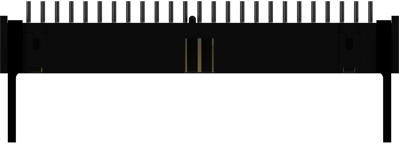

1-1761606-5 AMP PCB Connection Systems Image 2

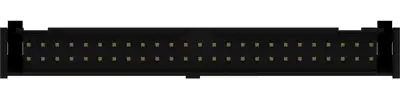

1-1761606-5 AMP PCB Connection Systems Image 3

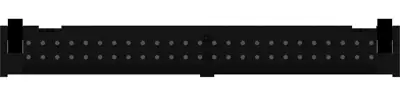

1-1761606-5 AMP PCB Connection Systems Image 4

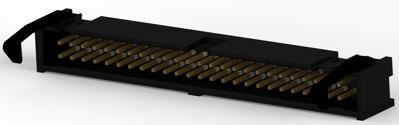

1-1761606-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
18.4688 € *
Available in 5 Days: 23 pcs. - if ordered today
Total Price:
18.47 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4688 €
10 pcs.
17.1479 €
25 pcs.
16.0055 €
50 pcs.
14.5537 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1761606-5, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 50 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 50
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Contact type pin
Orientation straight
Rated voltage 250 V
Additional parts equipped
Version pin header
Rated current 1 A
Grid 2.54 mm
Type of locking Yes
Colour black
Connection PCB connection
contact surface gold-plated
Number of rows 2
Pin number 50 pole
Connection plating tin-plated
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
