1-175778-0 | AMP

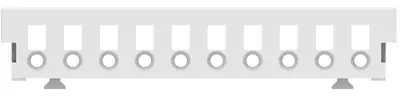

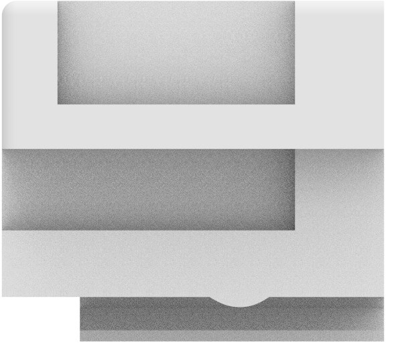

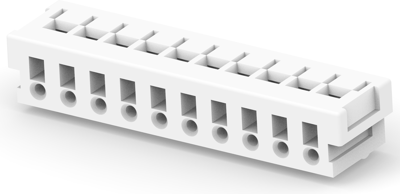

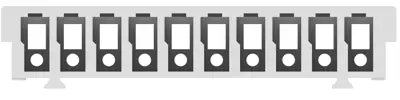

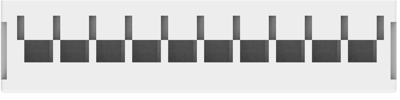

Socket housing, 10 pole, pitch 2 mm, straight, natural, 1-175778-0
Unit Price (€ / pc.)
0.4760 € *
Available in 5 Days: 23,780 pcs. - if ordered today
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4760 €
10 pcs.
0.4403 €
25 pcs.
0.4046 €
50 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle housing, 1-175778-0, AMP
Housing, Receptacle, Wire-to-Board, 10 Position, 2 mm Centerline, Crimp, 1 Row, Natural, Mating retention, Wire & Cable, Power & Signal.
Applications
- Business Equipment
- Industrial Machines
- PC
- Audio
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | socket | |
| Version | socket housing | |
| Rated current | 2 A | |
| Rated voltage | 125 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 10 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
