1-1747535-3 | AMP

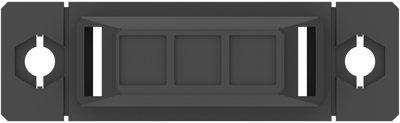

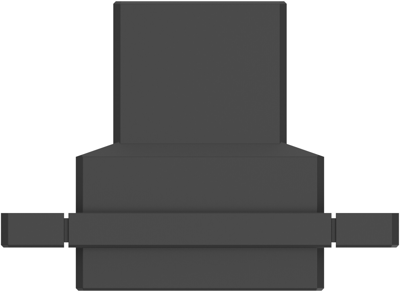

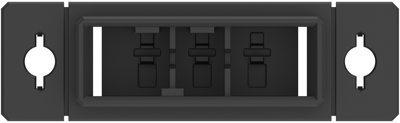

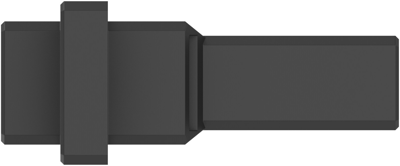

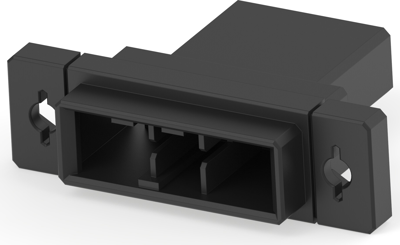

Plug housing, 3 pole, pitch 6.35 mm, straight, black, 1-1747535-3
Unit Price (€ / pc.)
5.4740 € *
Available in 5 Days: 700 pcs. - if ordered today
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4740 €
10 pcs.
5.0813 €
25 pcs.
4.7362 €
50 pcs.
4.3078 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-1747535-3, AMP
Wire-to-Panel, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Colour | black | |
| Pin number | 3 pole | |
| Connection | crimp connection | |
| Rated voltage | 600 V | |
| Contact type | tab | |
| Orientation | straight | |
| Grid | 6.35 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
