1-1747414-3 | AMP

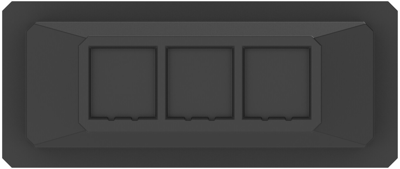

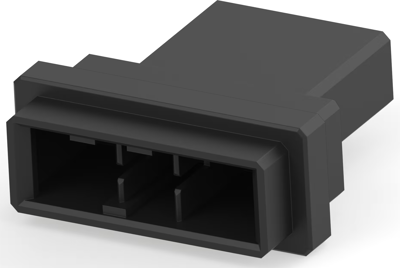

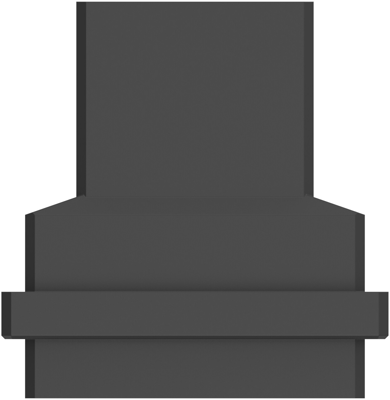

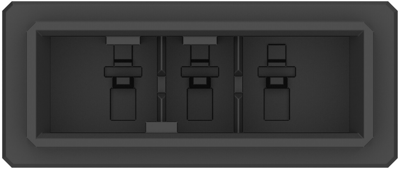

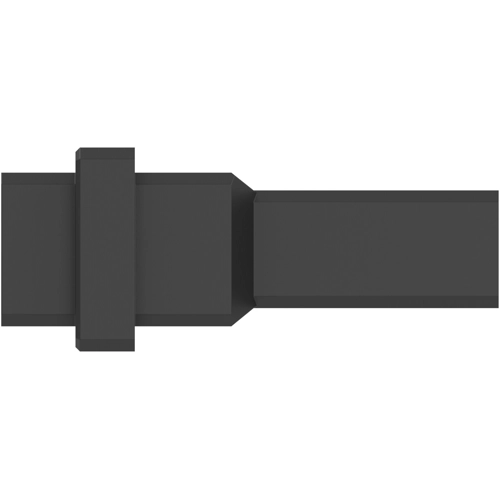

Plug housing, 3 pole, pitch 6.35 mm, straight, black, 1-1747414-3
Unit Price (€ / pc.)
3.6533 € *
Available: 0 pcs.
Leadtime: 35 Weeks **
PCB Connection System, 1-1747414-3, AMP
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | tab | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Grid | 6.35 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
