1-1747276-2 | AMP

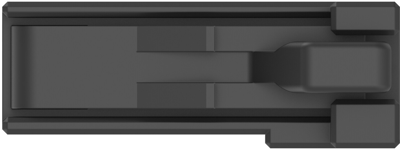

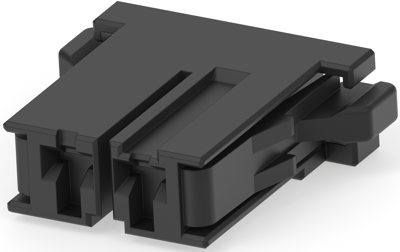

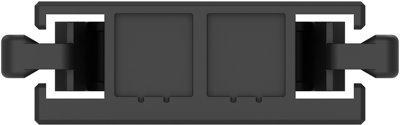

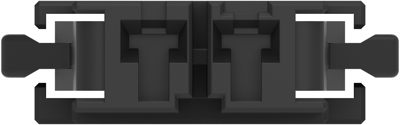

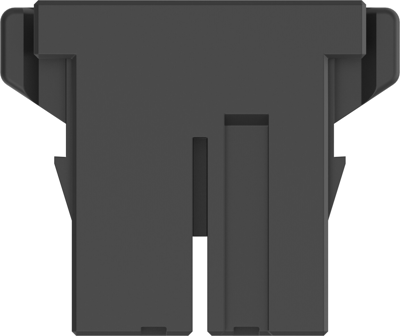

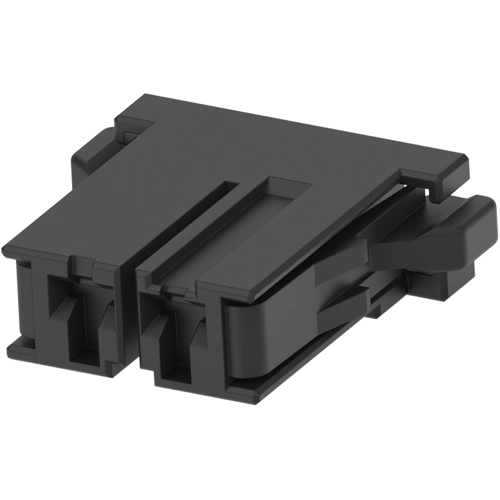

Socket header, 2 pole, pitch 6.35 mm, straight, black, 1-1747276-2
Unit Price (€ / pc.)
0.7735 € *
Available in 5 Days: 1,488 pcs. - if ordered today
PCB Connection System, 1-1747276-2, AMP
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| Grid | 6.35 mm | |
| Pin number | 2 pole | |
| Version | socket header | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 600 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
