1-1747145-5 | AMP

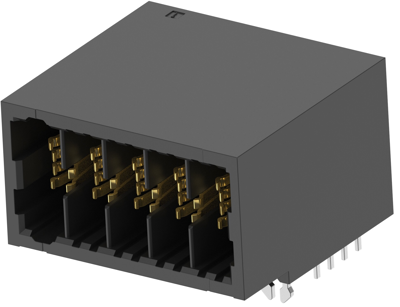

Pin header, 5 pole, pitch 5.08 mm, angled, black, 1-1747145-5
Unit Price (€ / pc.)
9.4010 € *
Available in 5 Days: 244 pcs. - if ordered today
Total Price:
235.03 € *
Price list
Quantity
Price per unit*
25 pcs.
9.4010 €
50 pcs.
9.2225 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 1-1747145-5, AMP
The 1-1747145-5 is useful for enabling cableless control board. This product is equipped with retention leg to protect board from load and space allocated to prevent the contact from twisting.
Features
- Circuit numbers are easily identified for board connector
- Keying function included for flexibility when using multiple units
- Soldering without masking
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 5 pole | |
| Grid | 5.08 mm | |
| Connection | solder connection | |
| Orientation | angled | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 20 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
