1-1734037-6 | AMP

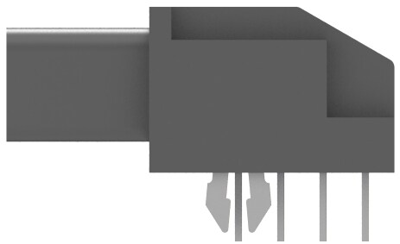

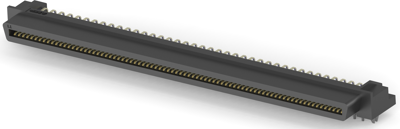

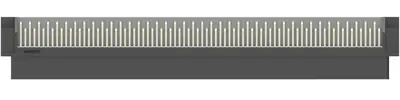

Socket header, 160 pole, pitch 1.27 mm, angled, black, 1-1734037-6
Unit Price (€ / pc.)
10.9718 € *
Available in 5 Days: 1,411 pcs. - if ordered today
Total Price:
10.97 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9718 €
5 pcs.
10.4006 €
10 pcs.
9.7342 €
25 pcs.
8.8774 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Mount receptacle, 1-1734037-6, AMP
PCB Mount receptacle, Right angle, Board-to-Board, 160 Position, 1.27 mm Centerline, Gold Flash, Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | solder connection | |
| Colour | black | |
| Additional parts | equipped | |
| Pin number | 160 pole | |
| Contact type | socket | |
| Orientation | angled | |
| Rated voltage | 250 V | |
| contact surface | gold-plated | |
| Version | socket header | |
| Rated current | 1 A | |
| Number of rows | 2 | |
| Grid | 1.27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
