1-172520-0 | AMP

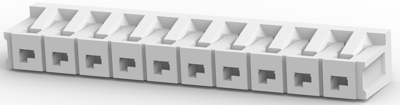

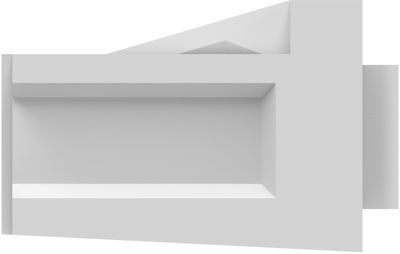

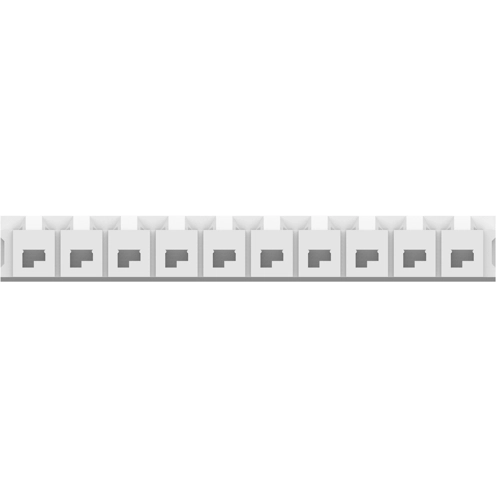

Plug housing, 10 pole, pitch 2.5 mm, straight, natural, 1-172520-0
Unit Price (€ / pc.)
0.1761 € *
Standard delivery time from the manufacturer is: 21 Weeks
PCB Connection System, 1-172520-0, AMP
Wire-to-Board, Printed Circuit Board, 10 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 10
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | pre-tinned | |
| Colour | natural | |
| Additional parts | unequipped | |
| Contact type | pin | |
| Connection plating | pre-tinned | |
| Grid | 2.5 mm | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Connection | crimp connection | |
| Breakable | No | |
| Pin number | 10 pole | |
| Version | plug housing | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
