1-172166-2 | AMP

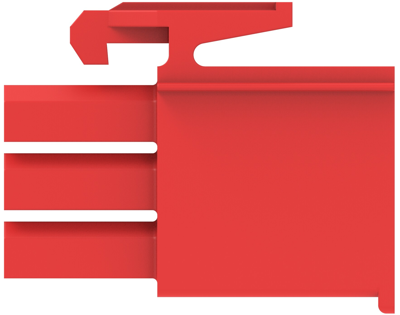

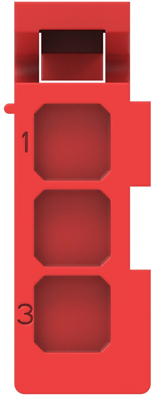

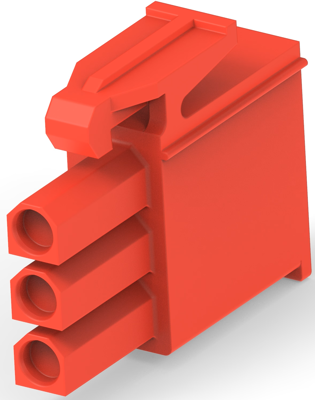

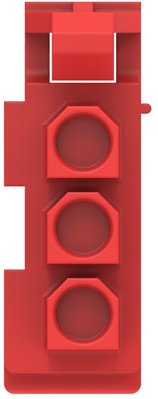

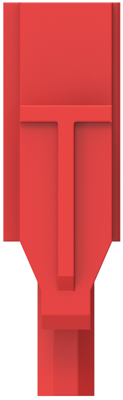

Plug housing, 3 pole, pitch 4.2 mm, straight, red, 1-172166-2
Unit Price (€ / pc.)
0.5474 € *
Available in 5 Days: 1,776 pcs. - if ordered today
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.4998 €
25 pcs.
0.4760 €
50 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 1-172166-2, AMP
Rectangular power connector, Housing, Plug, Wire-to-Wire, 3 Position, 4.2 mm Centerline, Wire & Cable, UL 94V-0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Grid | 4.2 mm | |
| Type of locking | Yes | |
| Colour | red | |
| Version | plug housing | |
| Number of rows | 1 | |
| Pin number | 3 pole | |
| Orientation | straight | |
| Connection | crimp connection | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
