1-172165-9 | AMP

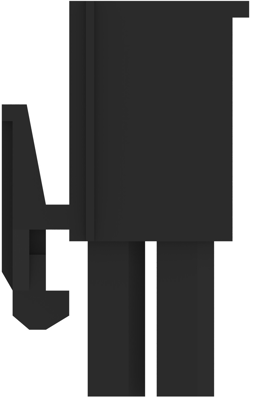

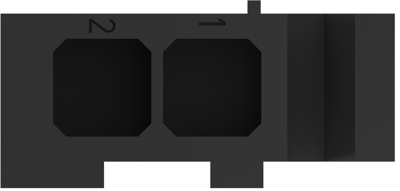

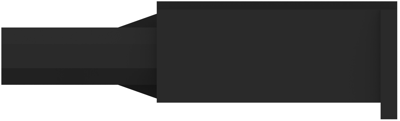

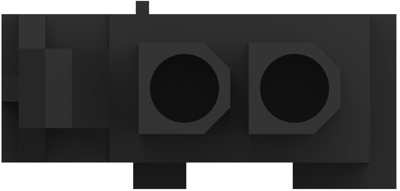

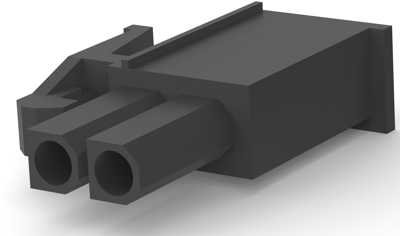

Plug housing, 2 pole, pitch 4.2 mm, straight, black, 1-172165-9
Unit Price (€ / pc.)
0.2999 € *
Available in 5 Days: 8,930 pcs. - if ordered today
PCB Connection System, 1-172165-9, AMP
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon 66
- Housing Color: black
- Number of positions: 2
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.2 mm | |
| Contact type | socket/pin | |
| Additional parts | unequipped | |
| Colour | black | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Pin number | 2 pole | |
| Orientation | straight | |
| Version | plug housing | |
| Type of locking | Yes | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
